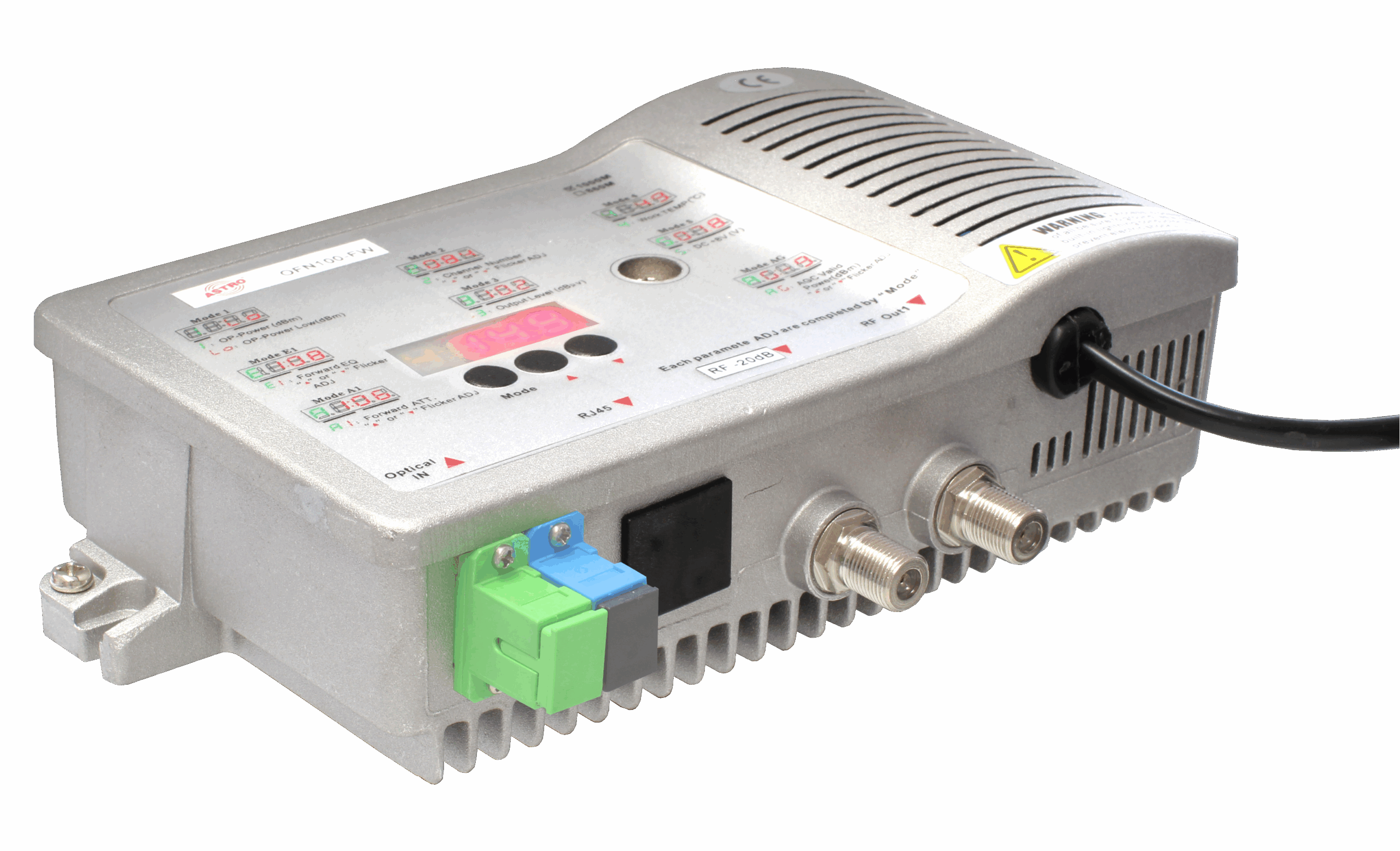

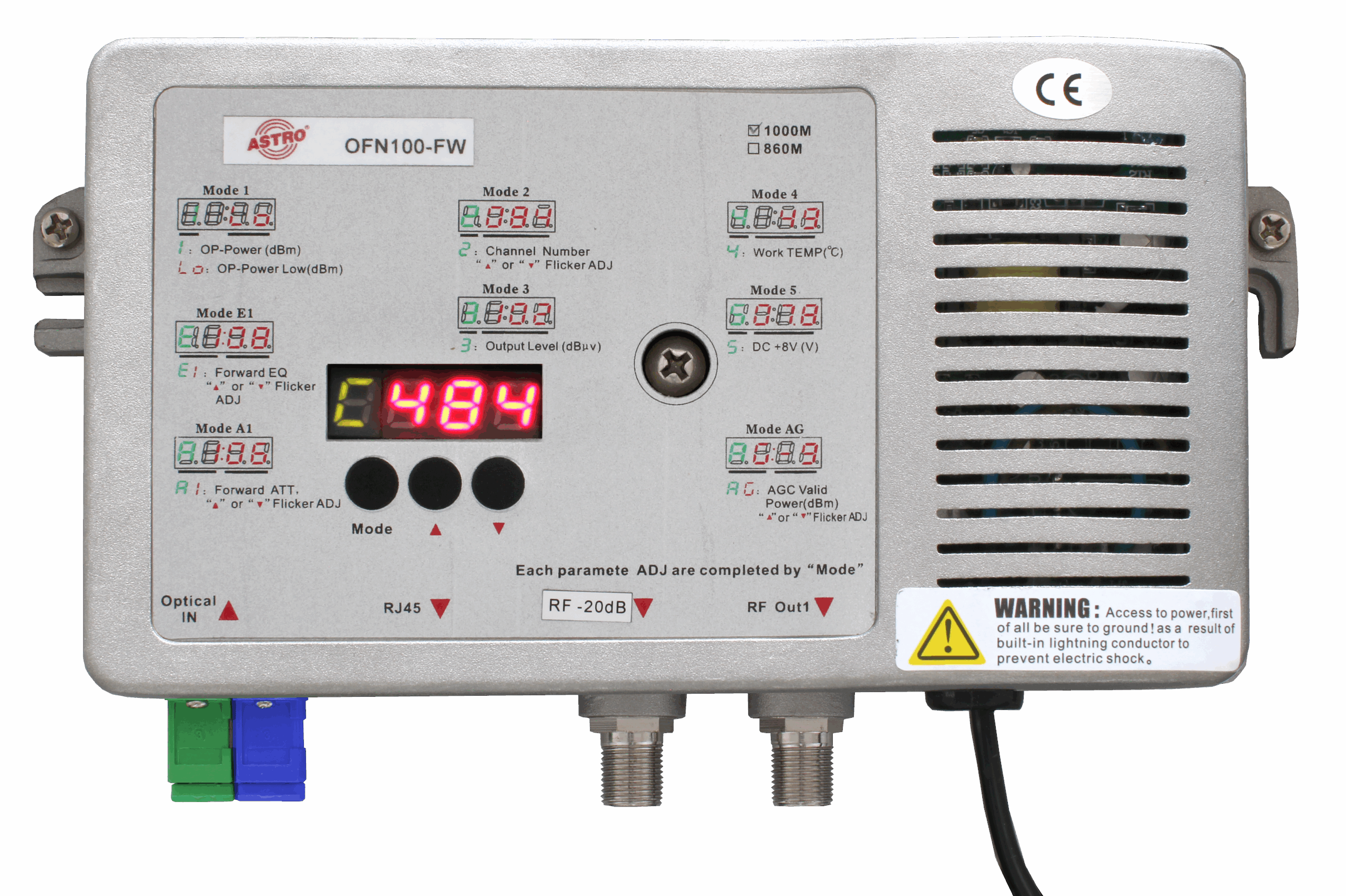

Optical CATV Node with WDM pass-through
€ 119.95
Node for Deep-Fibre CATV, HFC and FTTH networks
Specification
| Return circuit | Return path included |
|---|---|
| Type | Mini Node |
| Order number | 00212117 |
|---|---|
| EAN-Code | 4026187192945 |
OFN100-FW
22 in stock
Product Details
- Node for Deep-Fibre CATV, HFC and FTTH networks
- Forward path reception of CATV signals
- WDM pass-through filter for GPON data
- AGC for optical input signals
- 15 dB electronic attenuator for RF level
- integrated power supply
- SC/APC connector
- optical wavelength CATV: 1530…1610 nm
Download Details
-
Anleitung OFN100 DE pdf · 2mb
-
Manual OFN100 EN pdf · 2mb
-
Datenblatt OFN100 DE pdf · 2mb
-
Data sheet OFN100 EN pdf · 2mb
-
Blockschaltbild OFN100 pdf · 2mb
