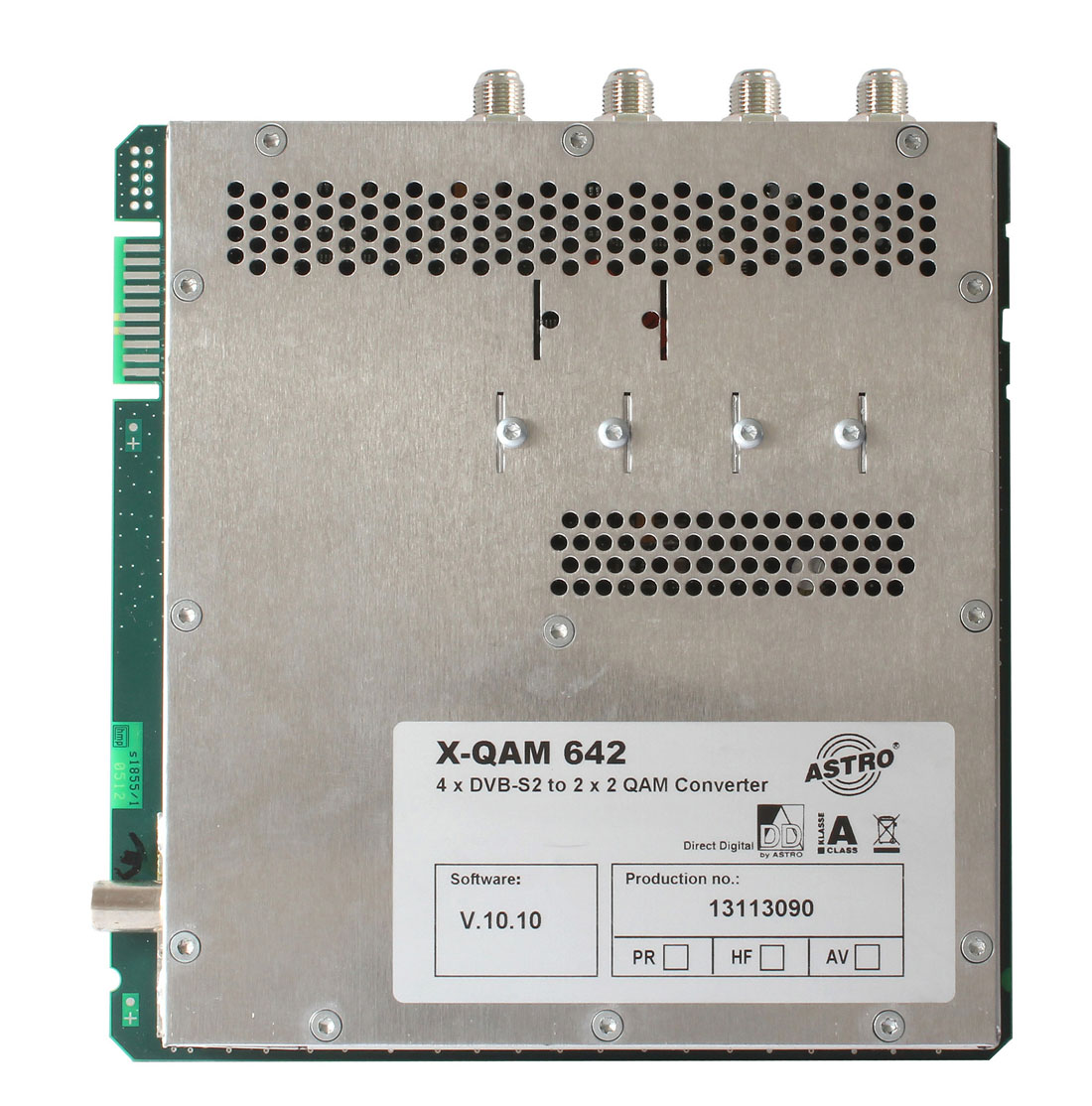

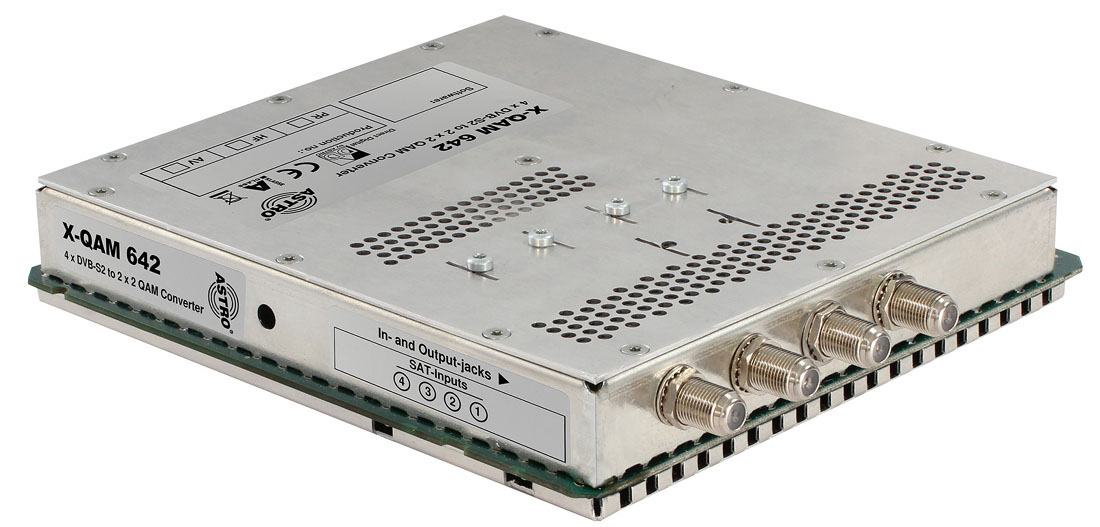

Signal converter 4 x DVB-S2 into 2 x 2 QAM

plugin card for modular base units X-8 twin and V 16

Specification

Module type

Plug-in card
Input signal

DVB-S2
Output signal

DVB-C
Order number

00380642

EAN-Code

4026187141165

X-QAM 642

No longer available

Product Details
  • plugin card for modular base units X-8 twin and V 16

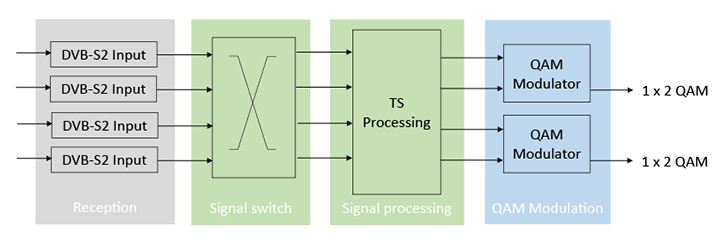

  • independent input signals are processed into 2 adjacent QAM channel pairs
  • MER typ. 45 dB
  • shoulder attenuation typ. 58 dB
  • Data rate adjustment
  • PCR correction and NIT generation
  • input channel switch for multiple use of one SAT polarization to reduce cabling effort
