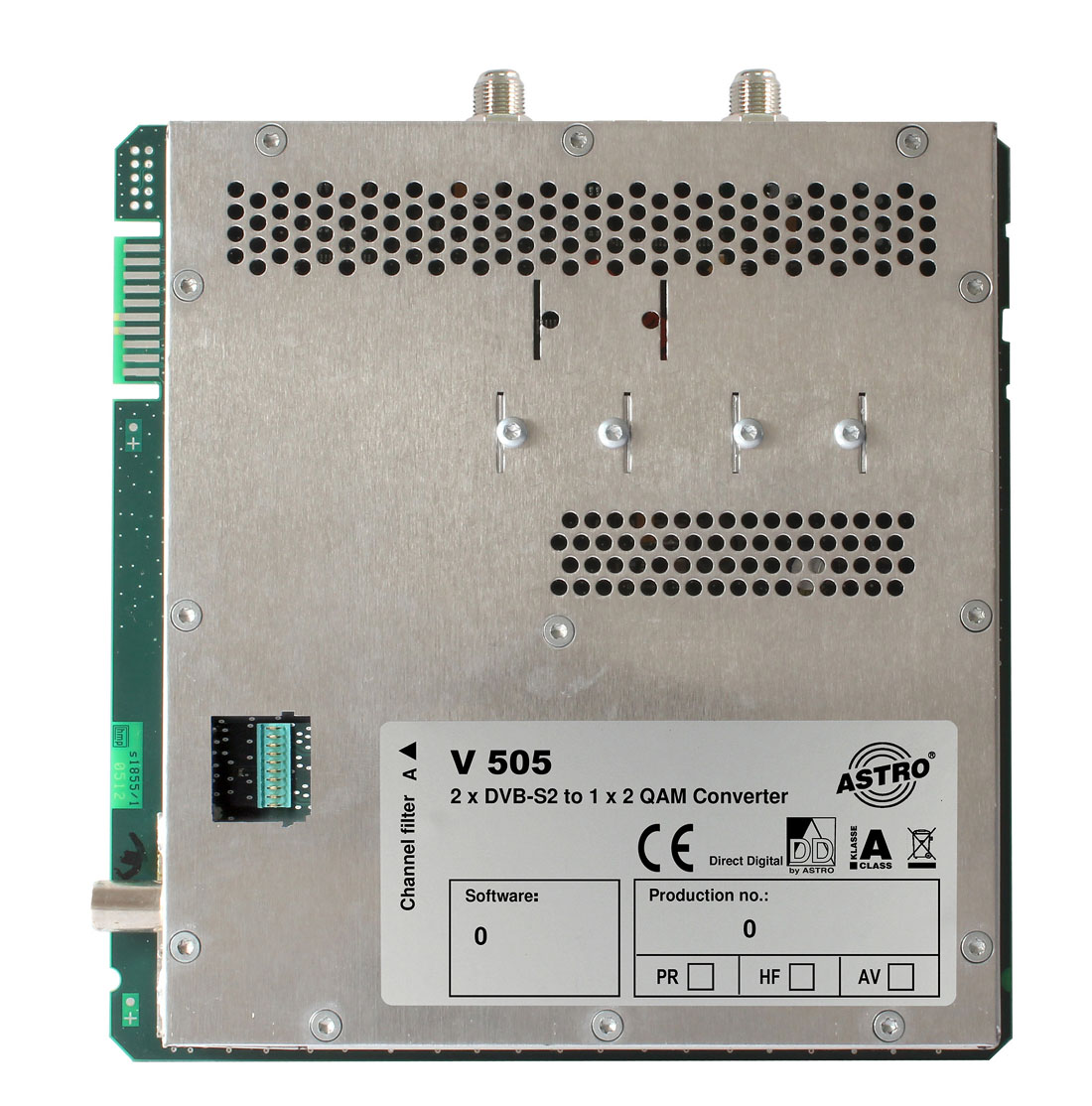

Signal converter 2 x DVB-S2 into 1 x 2 QAM

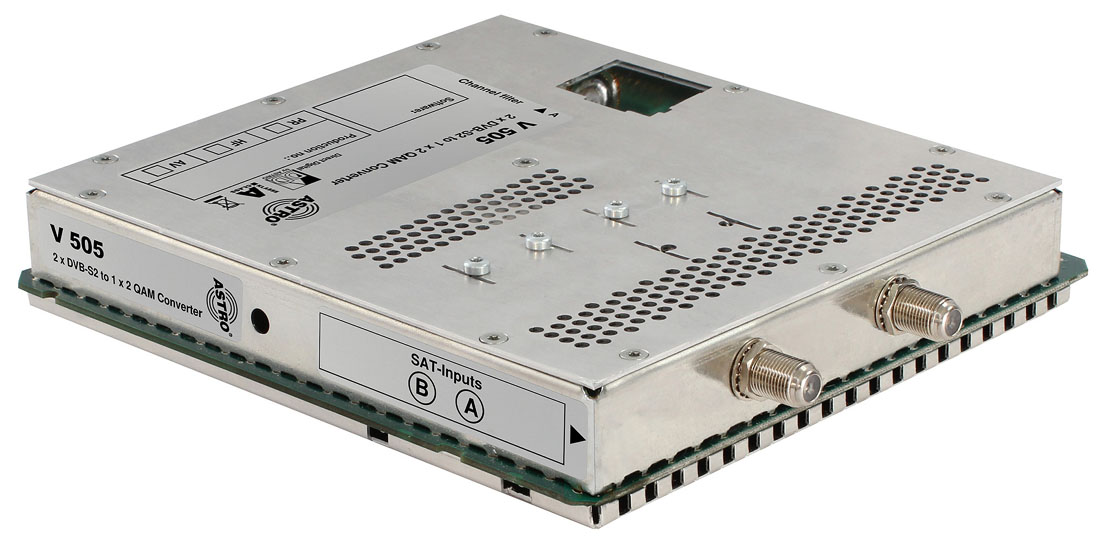

Signal converter 2 x DVB-S2 into 1 x 2 QAM - Image 2

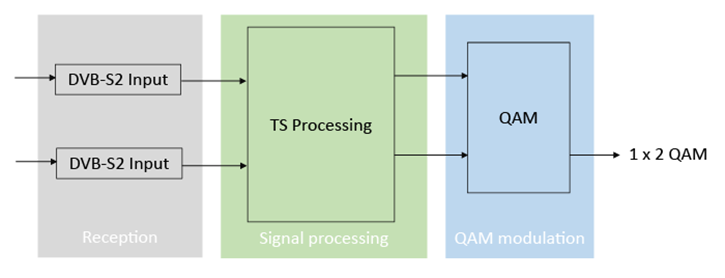

Signal converter 2 x DVB-S2 into 1 x 2 QAM - Image 3

Signal converter 2 x DVB-S2 into 1 x 2 QAM

plugin card for modular base unit V 16

Specification

Module type

Plug-in card
Input signal

DVB-S2
Output signal

DVB-C
Order number

00380515

EAN-Code

4026187150990

V 505

No longer available

Product Details
  • plugin card for modular base unit V 16
  • for processing of DVB-S(2) modulated SAT-IF signals into 2 QAM adjacent channels
  • integrated data rate adjustment
  • PCR correction
  • NIT generation
  • 8 manal PID filters
  • one slot for channel selective output filters
  • outstanding output parameters by Direct Digital Technology
Download Details

Product is combinable with

Modular head-end base unit
V 16.3
base unit for mounting up to 8 plugin cards of the X and V series

No longer available
