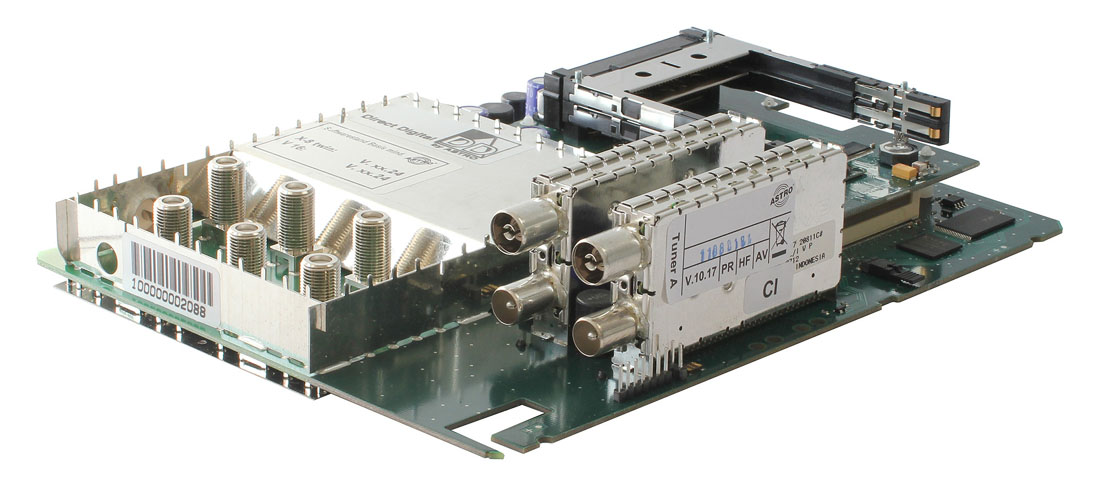

Signal converter 2 x DVB-C in 6 x ASI
Signal converter 2 x DVB-C in 6 x ASI - Image 2

Signal converter 2 x DVB-C in 6 x ASI

plugin card for modular base unit V 16

Specification

Module type

Plug-in card
Input signal

DVB-C
Output signal

ASI
Order number

00380210

EAN-Code

4026187735081

V 231 CI

No longer available

Product Details
  • plugin card for modular base unit V 16

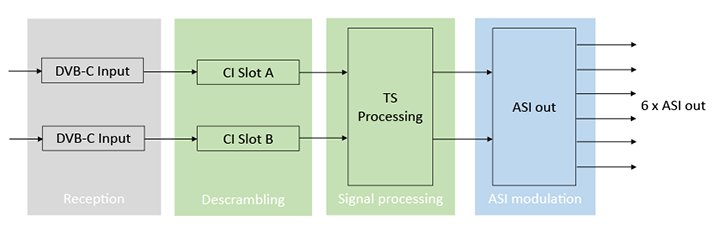

  • processing of 2 independent QAM input signals to ASI data streams
  • routing per Software to up to 6 outputs
  • postprocessing of streams with the ASTRO IP-Gateway U 262 or with any other ASI transportstream compatible equipment (e.g. multiplexer)
  • 2 CI interfaces
Download Details

Product is combinable with

Modular head-end base unit
V 16.25
base unit for mounting up to 8 plugin cards of the X and V series

No longer available
