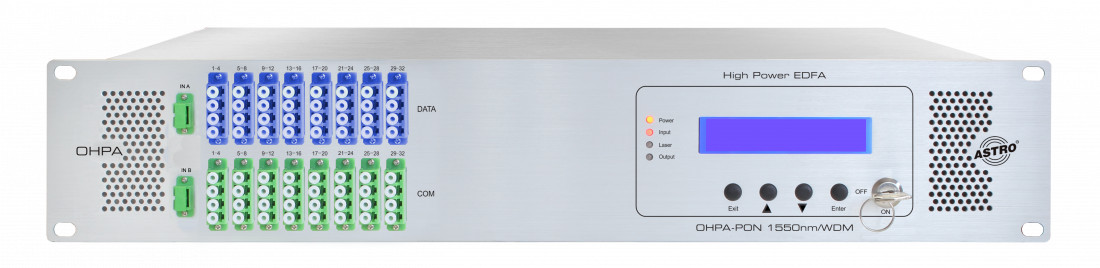

Optical amplifier with WDM and input switch
€ 8'995.00
1550 nm, 32 x 18 dBm optical output power
Specification
| Type | WDM High Power EDFA |
|---|
| Order number | 00212106 |
|---|---|
| EAN-Code | 4026187196585 |
OHPA-32180-WDM-S DC
Out of stock
Product Details
- optical high-power amplifier for FttH RF overlay networks
- 1550 nm, 32 x 18 dBm optical output power
- WDM filter 1310 nm / 1490 nm + 1550 nm integrated
- integrated optical input switch for link redundancy
- optical connectors SC/APC (input), LC/APC (COM output) and LC/PC (GPON)
- 19" housing, two rack units
- redundant power supply (36 - 72 VDC)
Download Details
-
Anleitung OHPA DE pdf · 2mb
-
Anleitung OHPA EN pdf · 2mb
-
Blockschaltbild OHPA-WDM-S pdf · 2mb
-
Datenblatt OHPA-WDM-S Serie DE pdf · 2mb
-
Datenblatt OHPA-WDM-S Serie EN pdf · 2mb
