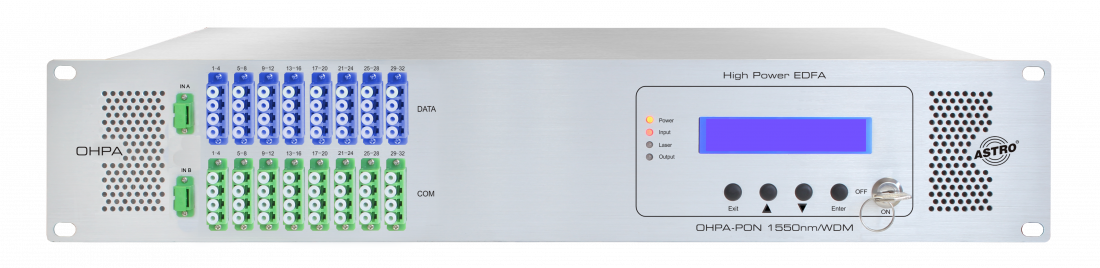

Optical amplifier with WDM and input switch

Optical amplifier with WDM and input switch

€ 8'695.00

1550 nm, 32 x 17 dBm optical output power

Specification

Type

WDM High Power EDFA
Order number

00212104

EAN-Code

4026187196561

OHPA-32170-WDM-S DC

Out of stock

Product Details
  • optical high-power amplifier for FttH RF overlay networks
  • 1550 nm, 32 x 17 dBm optical output power
  • WDM filter 1310 nm / 1490 nm + 1550 nm integrated
  • integrated optical input switch for link redundancy
  • optical connectors SC/APC (input), LC/APC (COM output) and LC/PC (GPON)
  • 19" housing, two rack units
  • redundant power supply (36 - 72 VDC)
Download Details

Product is combinable with

Externally modulated optical transmitter
OEMTX-1550-10 AC
1550 nm, 2 x 10 dBm
11.500,00 € plus VAT
