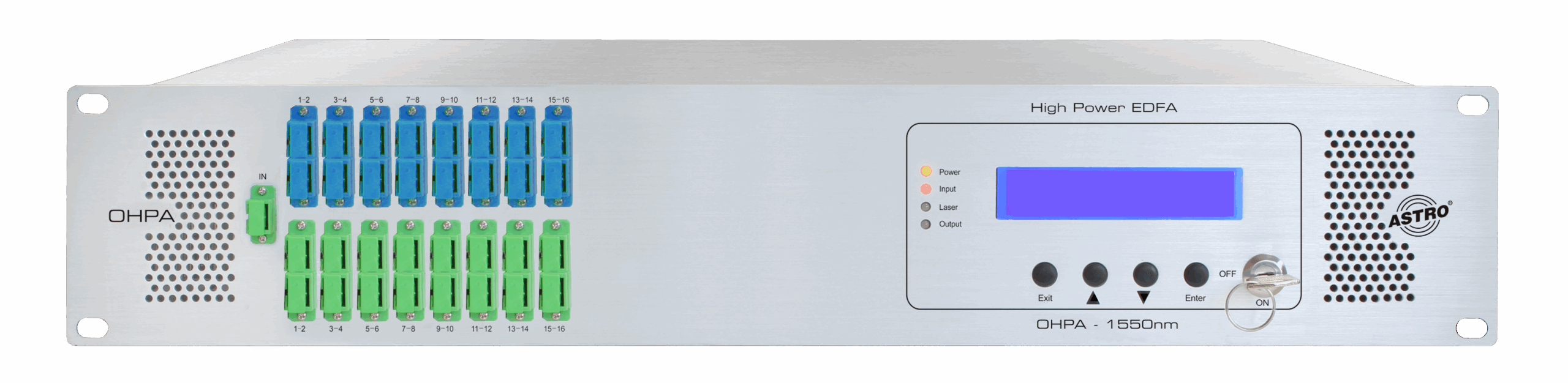

Optical amplifier with WDM
€ 7'495.00
Specification
| Type | WDM High Power EDFA |
|---|
| Order number | 00212032 |
|---|---|
| EAN-Code | 4026187193225 |
OHPA-16190-WDM AC
Out of stock
Product Details
- Optical high-power amplifier for FTTH RF overlay networks
- integrated WDM filter 1260-1360 nm / 1480-1500 nm / 1575-1581 nm / 1610-1660 nm
- ErYb doped double clad technology
- 16 optical outputs with each 19 dBm optical output power
- 19" housing, one RU
- Settings via Frontpanel or Web Interface
- SNMP
- low power consumption
- redundant power supplies
Download Details
-
Manual OHPA DE pdf · 2mb
-
Manual OHPA EN pdf · 2mb
-
Data sheet OHPA-WDM series DE pdf · 2mb
-
Data sheet OHPA-WDM series EN pdf · 2mb
-
Block diagram OHPA-WDM pdf · 2mb
