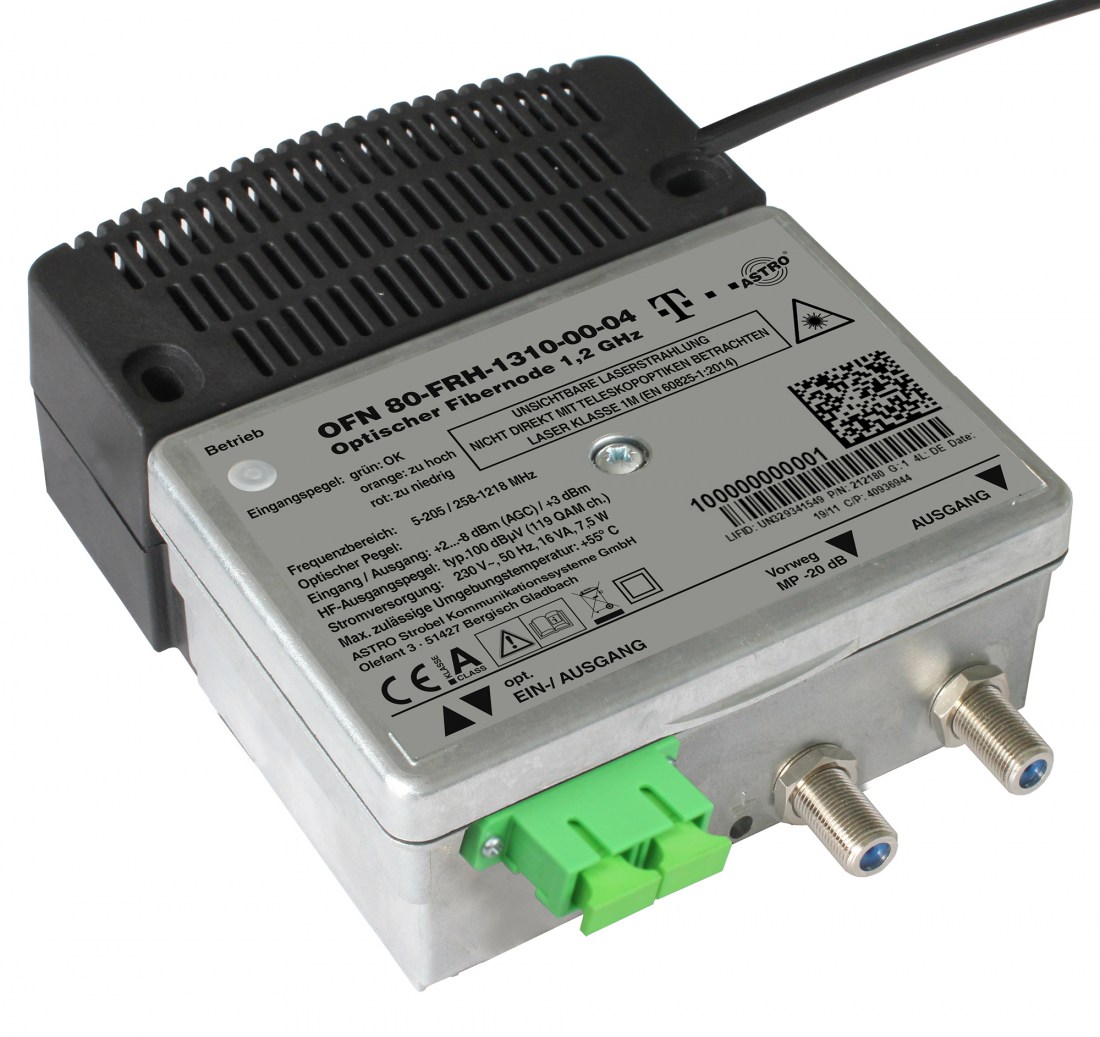

Optical CATV compact receiver
€ 150.60
1310 nm Upstream TX
Specification
| Return circuit | Return path included |
|---|---|
| Type | Mini Node |
| Order number | 00212251 |
|---|---|
| EAN-Code | 4026187271022 |
OFN80-FRH-1310-1F
Out of stock
Product Details
- Fibre node with separate forward and return fibre
- wavelength in forward path 1100 - 1600 nm
- 1310 nm Upstream TX
- Automatic Gain Control (AGC)
- attenuation with PAD in forward path
- slope adjustment selectable with jumper 0db / 2dB / 4dB / 6dB
- return path with continuous or burst mode
- attenuation in return path with PADs
- ingress noise test/filter with jumpers (0dB / 6dB /40dB)
- pluggable diplexer: 65/85 or 204/258
- forward path frequency: 258 - 1218 MHz
Download Details
-
Anleitung OFN80 DE pdf · 2mb
-
Manual OFN80 EN pdf · 2mb
-
Datenblatt OFN80 DE pdf · 2mb
-
Data sheet OFN80 EN pdf · 2mb
-
Blockschaltbild OFN80 pdf · 2mb
