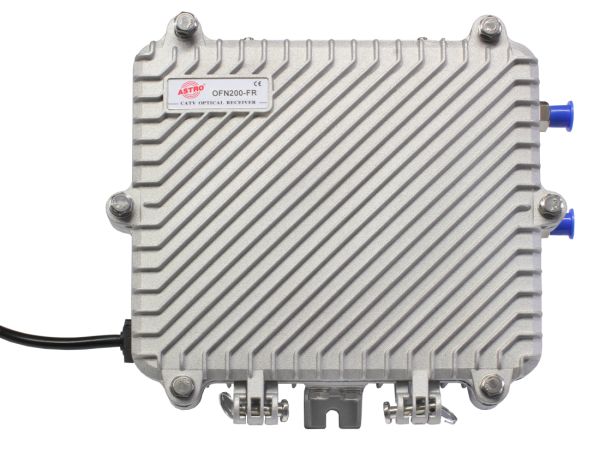

Modular optical CATV node
€ 255.00
Modular optical CATV node for DOCSIS 3.1 specification, Return Path TX 1450 nm
Specification
| Return circuit | Return path included |
|---|---|
| Type | Modular Node |
| Order number | 00212188 |
|---|---|
| EAN-Code | 4026187199197 |
OFN220-FR-1450-85 AC
3 in stock
Product Details
- FTTB node for Docsis 3.1 applications
- 1 Fibre
- Forward RX 1540..1560 nm
- 1x Return Path TX 1450 nm + 3 dBm
- Return laser tunable to 4 channels
- AGC
- Optical In -8/-7/-6/-5 .. +0 dBm
- 108 dBµV
- EQ and ATT electronical setting
- Forward path 110 MHz -1218 MHz
- Return path 5 - 85 MHz
- Optical Connector: 1x SC/APC
- Mains Power 150 -250 VAC
Download Details
-
Anleitung OFN220 DE pdf · 2mb
-
MAnual OFN220 EN pdf · 2mb
-
Datenblatt OFN220 DE pdf · 2mb
-
Data sheet OFN220 EN pdf · 2mb
-
Blockschaltbild OFN220 pdf · 2mb
