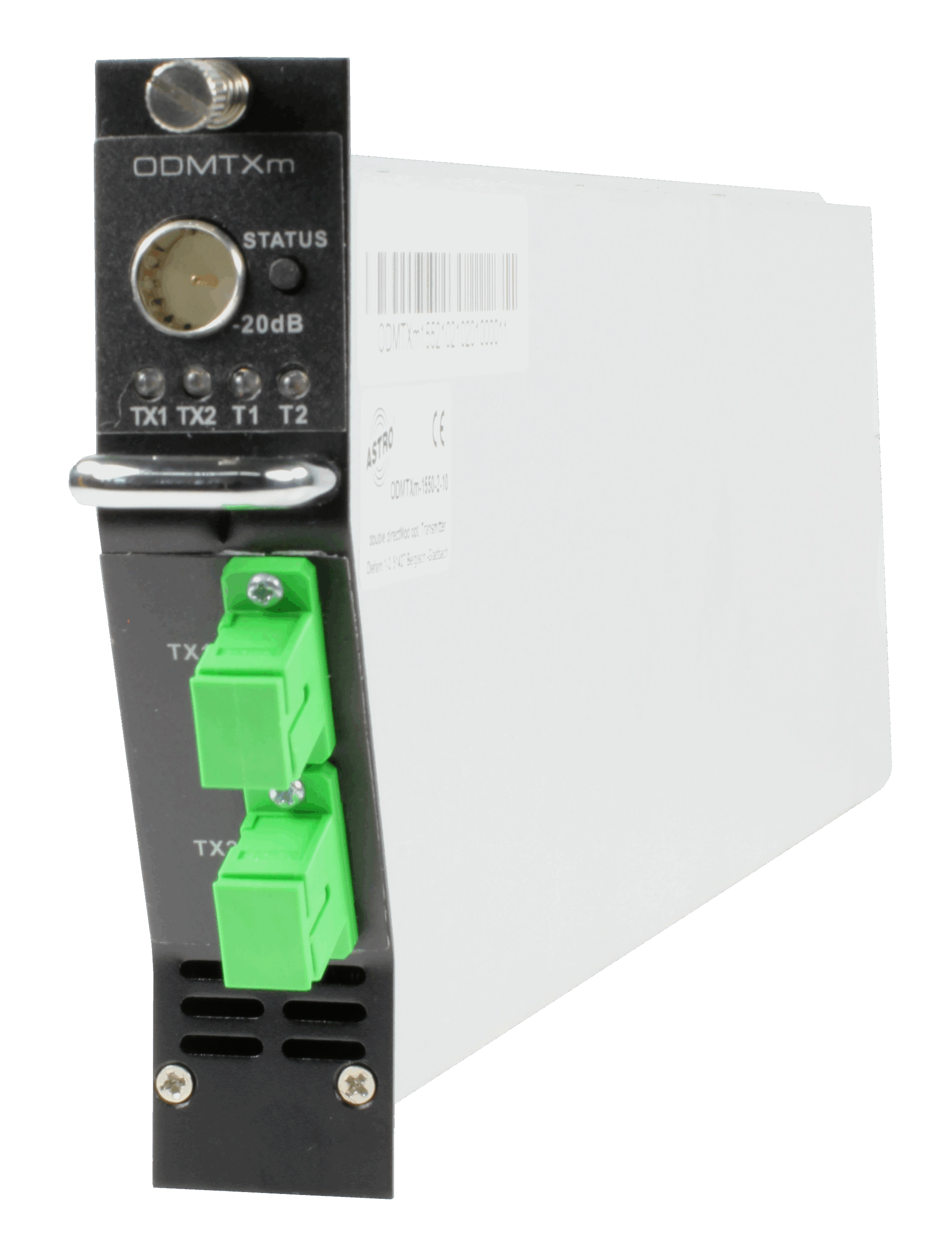

Direct modulated transmitter
€ 815.00
optical direct modulated transmitter, 1310 nm
Specification
| Number of optical outputs | 1 |
|---|---|
| Output power | 10 dBm |
| Modulation type | Direct modulated |
| Wavelength | 1310 nm |
| Order number | 00212050 |
|---|---|
| EAN-Code | 4026187210458 |
ODMTXm-1310-10
3 in stock
Product Details
- plug-in module for optical communication platform AOCS
- optical direct modulated transmitter, 1310 nm
- +10,0 dBm
- 2 RF inputs (e.g. BC/NC)
- optical output
- 47 MHz - 1218 MHz

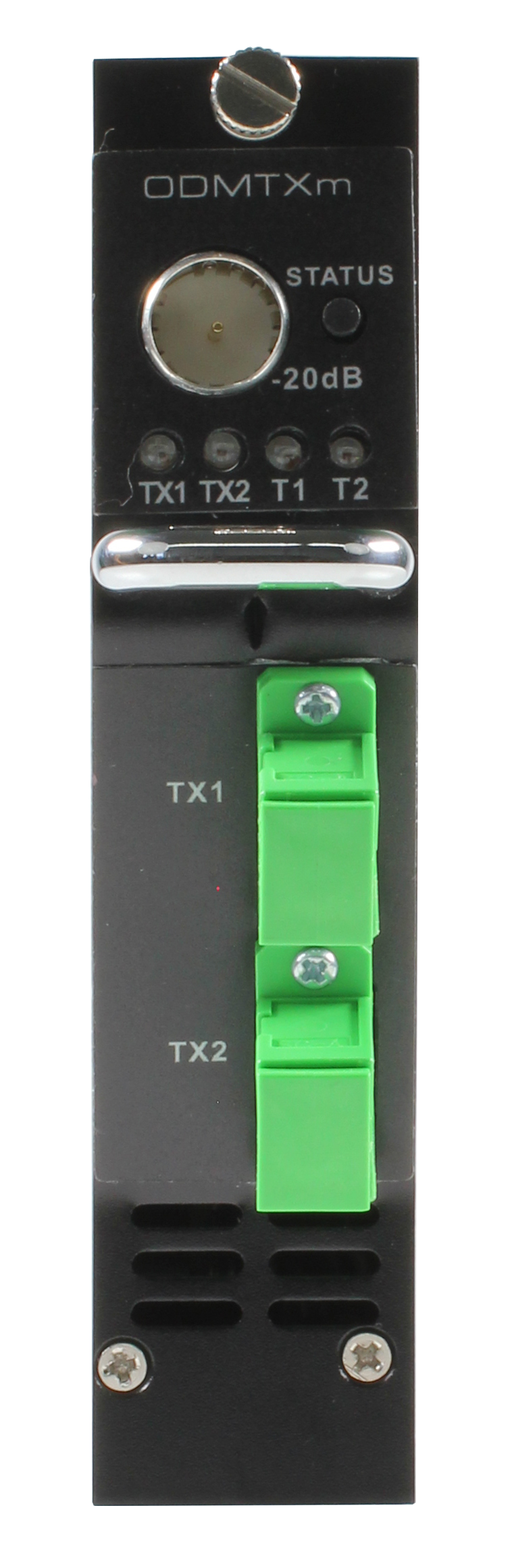

- optical connector SC/APC on front side

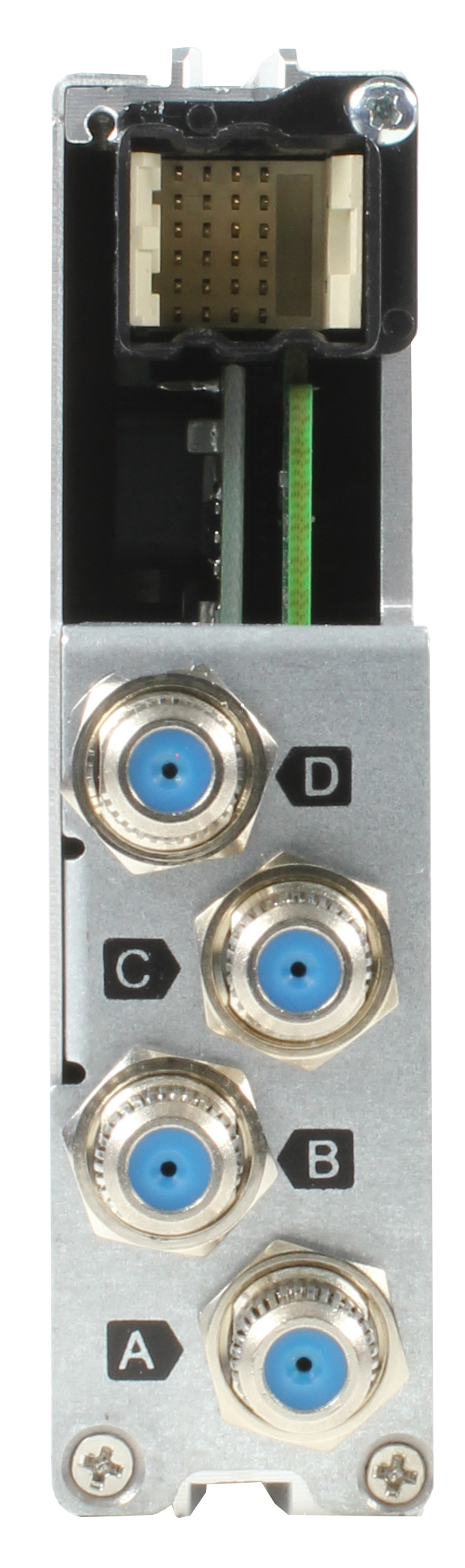

- RF testport on rear side
Download Details
-
Datenblatt ODMTXm DE pdf · 2mb
-
Data sheet ODMTXm EN pdf · 2mb
-
Anleitung AOCS System DE pdf · 2mb
-
Manual AOCS system EN pdf · 2mb
-
Blockschaltbild ODMTXm pdf · 2mb
