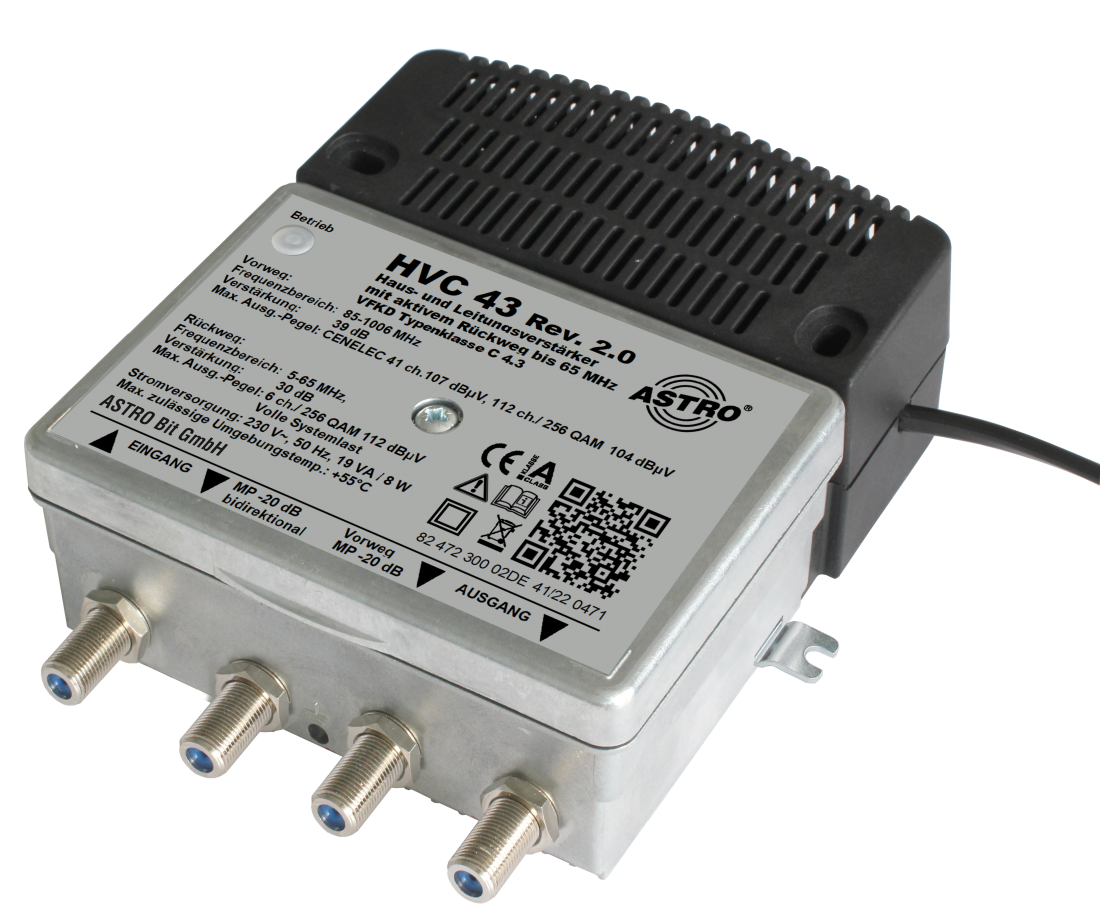

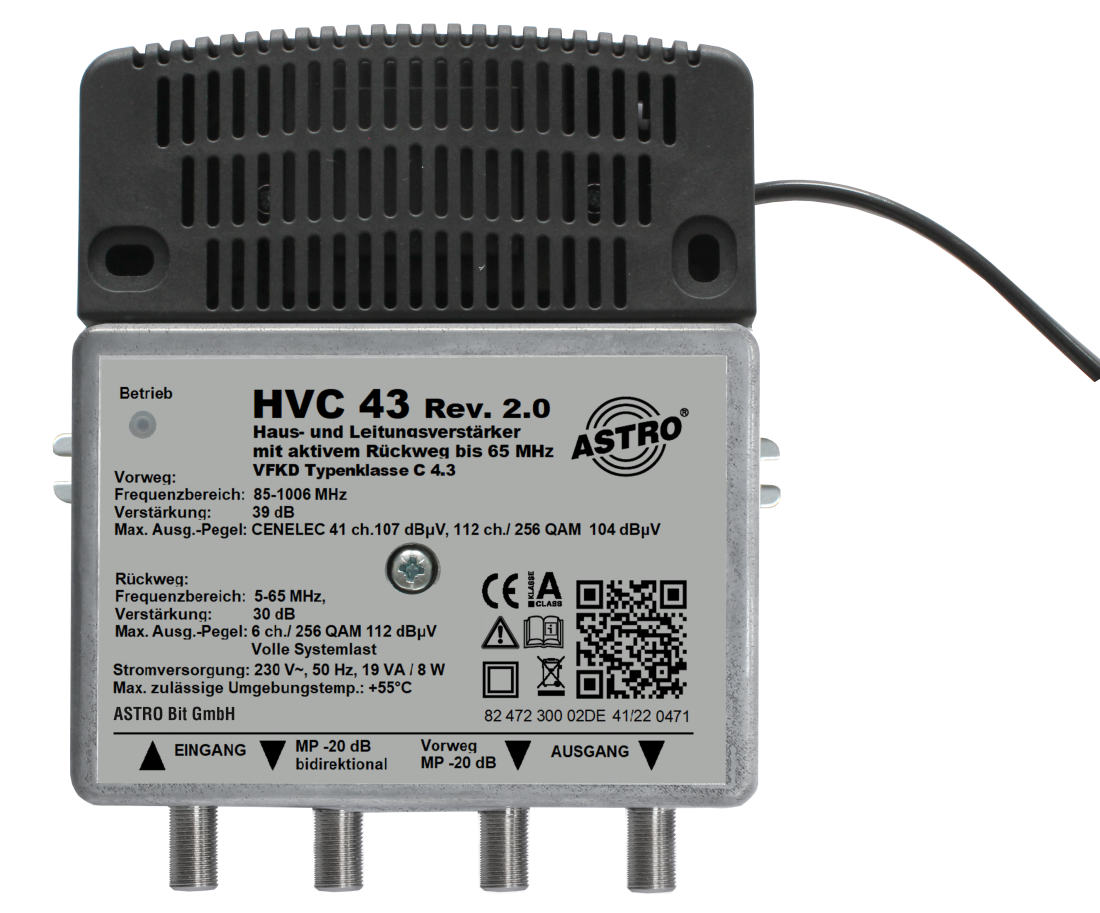

Universal broadband amplifier (5 pieces)
€ 421.75
with 65 MHz return path
Specification
| Device type | Compact |
|---|---|
| Power supply | Local |
| Frequency range | up to 1006 MHz |
| Forward path gain | >39 dB |
| Approval by network operator | Vodafone GmbH |
| Order number | 00217324 |
|---|---|
| EAN-Code | 4026187197759 |
HVC 43
52 in stock
Product Details
- Broadband amplifier with 65 MHz return path
- In advance up to 1006 MHz
- Pre-amplification 40 dB
- Output level advance 107 dBµV

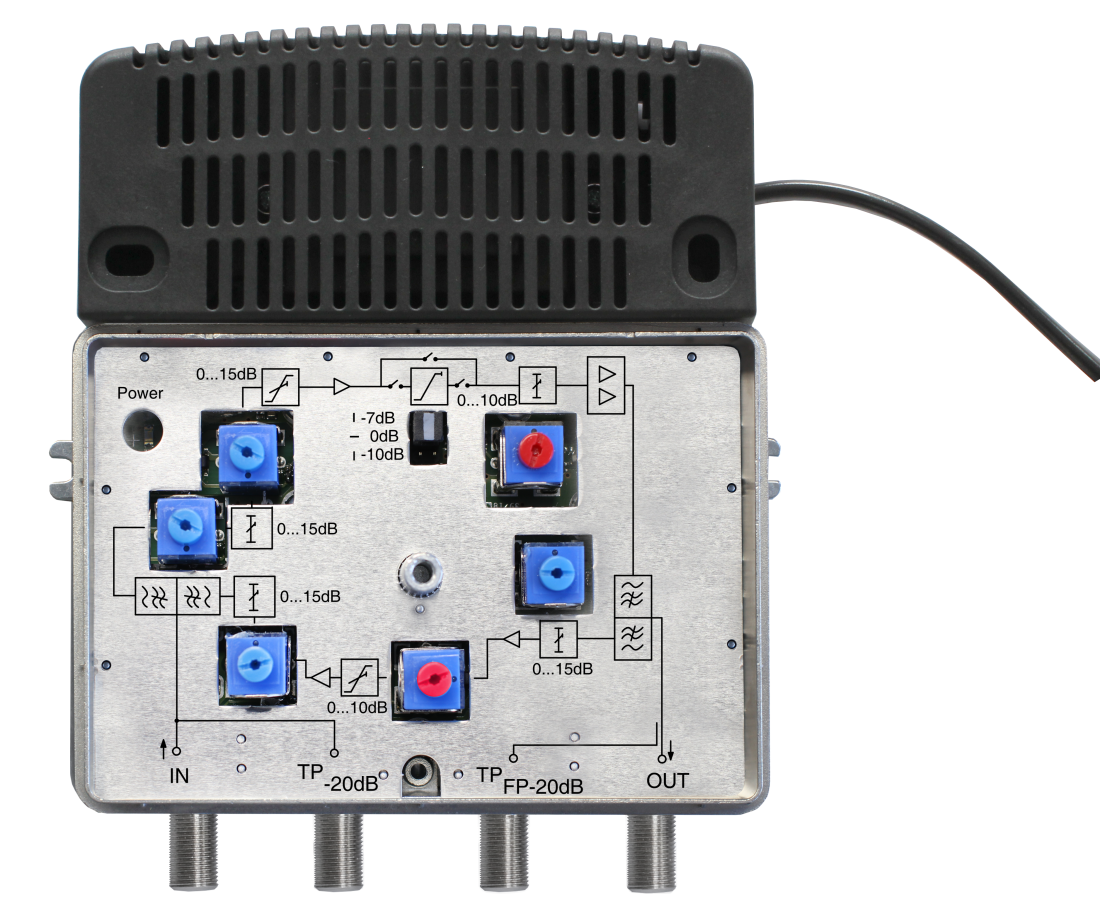

- Interstage-Slope 0/7/10 dB pluggable in advance
- Interstage attenuation 0-10 dB in advance
- gain return path 30 dB
- Output level return path 112 dBµV (6 Ch. 256 QAM / 8 MHz)
- Attenuator control Pre-way 0-15 dB
- Equalizer Pre-Ahead 0 - 15 dB
- Attenuator return path 0 - 15 dB (each in input and output)
- Equalizer return path 0 - 10 dB
- Measuring points in input and output, 4 x F-connection sockets
- Vodafone GmbH certified, type class C(4.3)
Download Details
-
Anleitung HVC 43 DE pdf · 2mb
-
Blockschaltbild HVC 43 pdf · 2mb
-
Datenblatt HVC 43 DE pdf · 2mb
