Universal broadband amplifier
with active 65 MHz return path
Specification
| Device type | Compact |
|---|---|
| Power supply | Local |
| Frequency range | up to 1006 MHz |
| Forward path gain | 25-29 dB |
| Approval by network operator | Vodafone GmbH |
| Order number | 00217351 |
|---|---|
| EAN-Code | 4026187195380 |

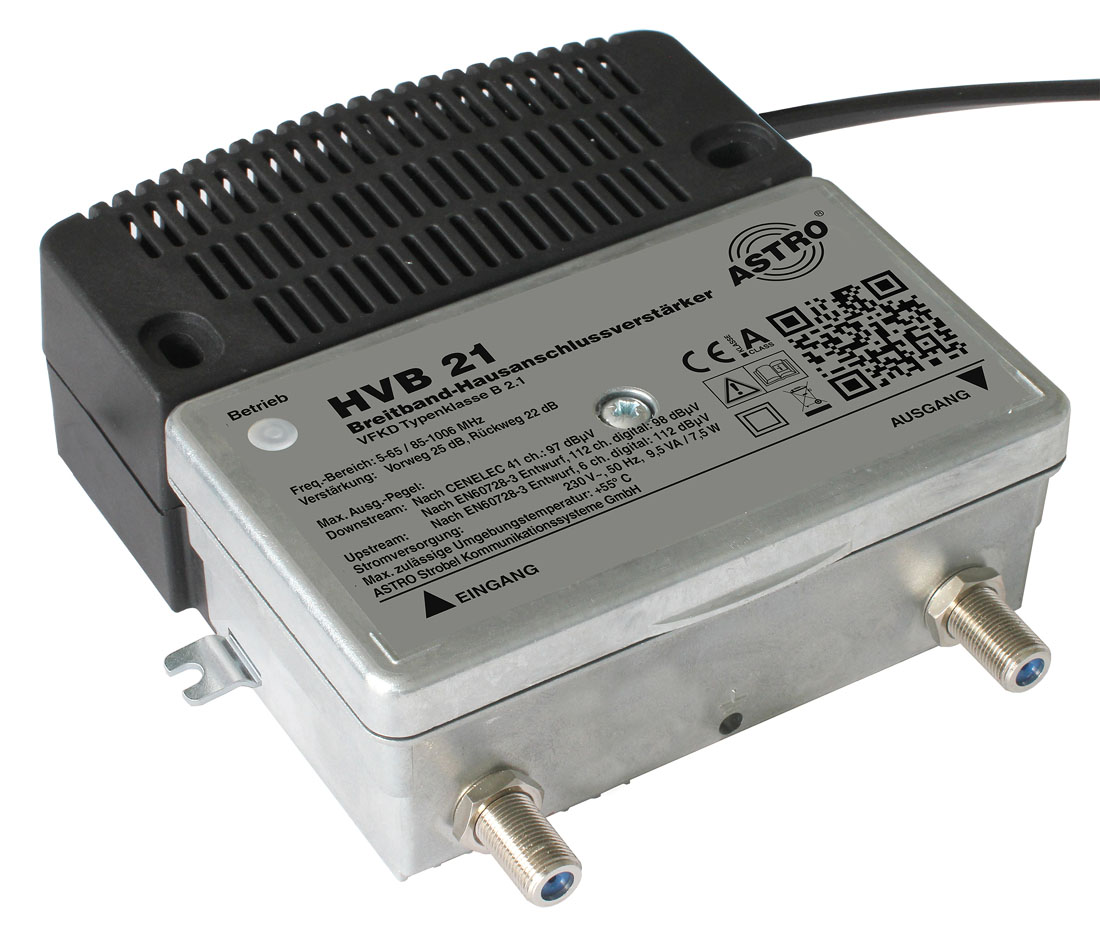

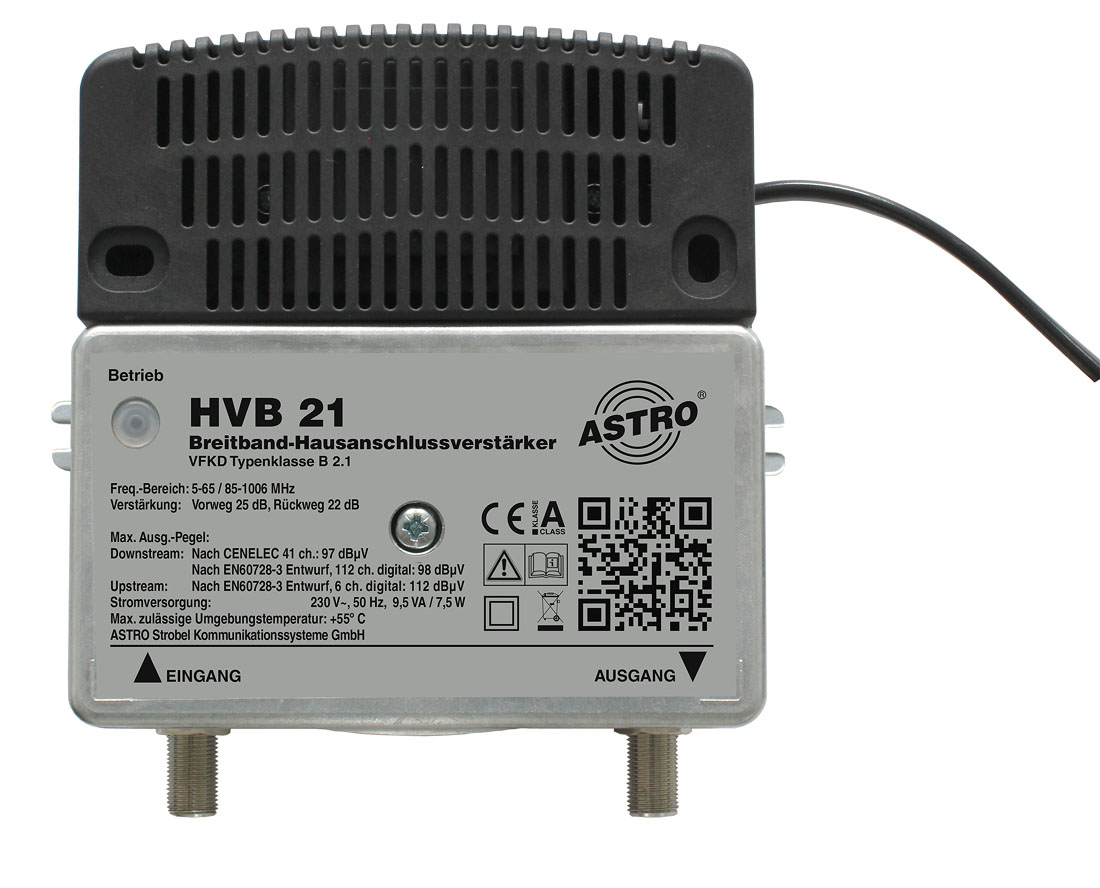

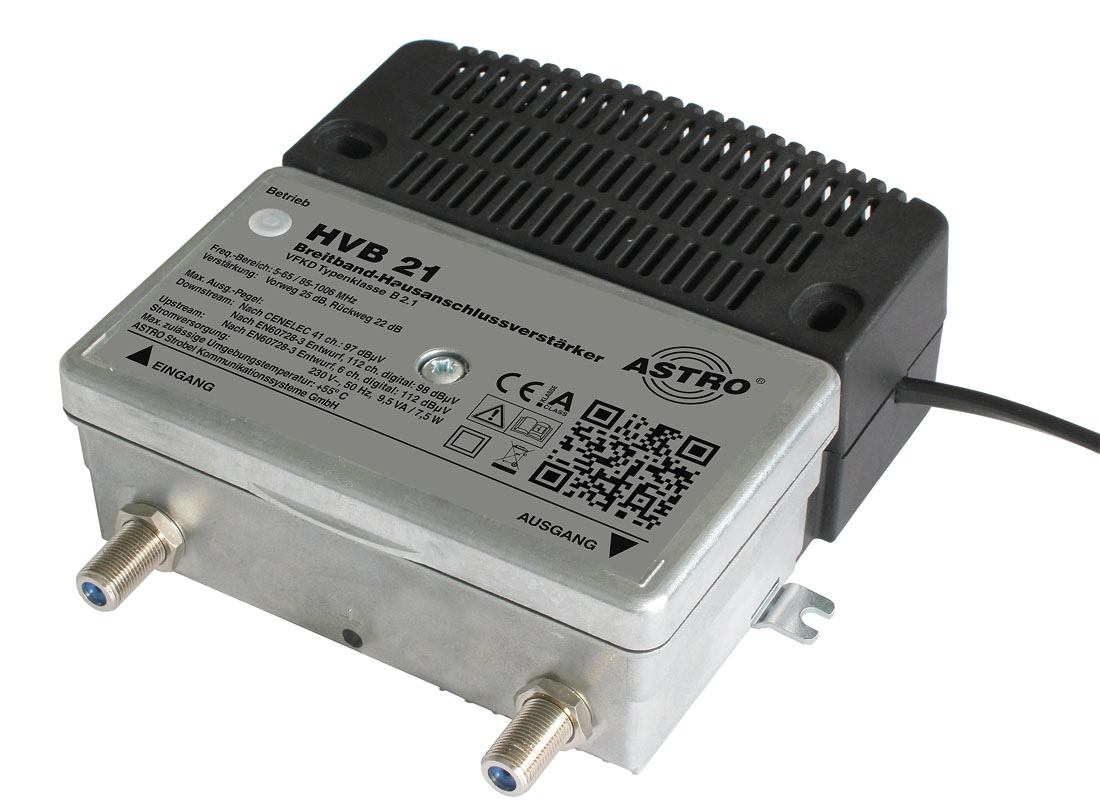

HVB 21
No longer available
Product Details
- Broadband amplifier with active 65 MHz return path
- high modulation of the return path for operational reliability even with multi-channel load
- Pre-gain 25 dB
- Output level front way 97 dBµV
- Return path gain 22 dB
- Output level return path 111 dBµV (6 carriers in RW each 8 MHz / QAM256)
- Attenuation Pre-travel 0 - 15 dB in input, attenuator
- Equalizer pre-path 0 - 15 dB in input, attenuator
- Interstage Slope 0 or 7 dB, pluggable
- Attenuation in return path 0 - 15 dB in input, attenuator
- Interstage slope in the return path 3 dB fixed
- Vodafone certified, type class B(2.1)
Download Details
-
Manual HVB 21_HVB 31_HVB 32 DE pdf · 2mb
-
Operating manual HVB 22_HVB 31_HVB 32 EN pdf · 2mb
-
Data sheet HVB 21_HVB 31_HVB 32 EN pdf · 2mb
-
Data sheet HVB 21_HVB 31_HVB 32 DE pdf · 2mb
-
Block diagram HVB 21_HVB 31_HVB 32 pdf · 2mb
