Universal broadband amplifier
€ 86.50
with active 65 MHz return path
Specification
| Device type | Compact |
|---|---|
| Power supply | Local |
| Frequency range | up to 1006 MHz |
| Forward path gain | 35-39 dB |
| Approval by network operator | Vodafone West GmbH |
| Order number | 00217423 |
|---|---|
| EAN-Code | 4026187195779 |
HV 433
5 in stock
Product Details

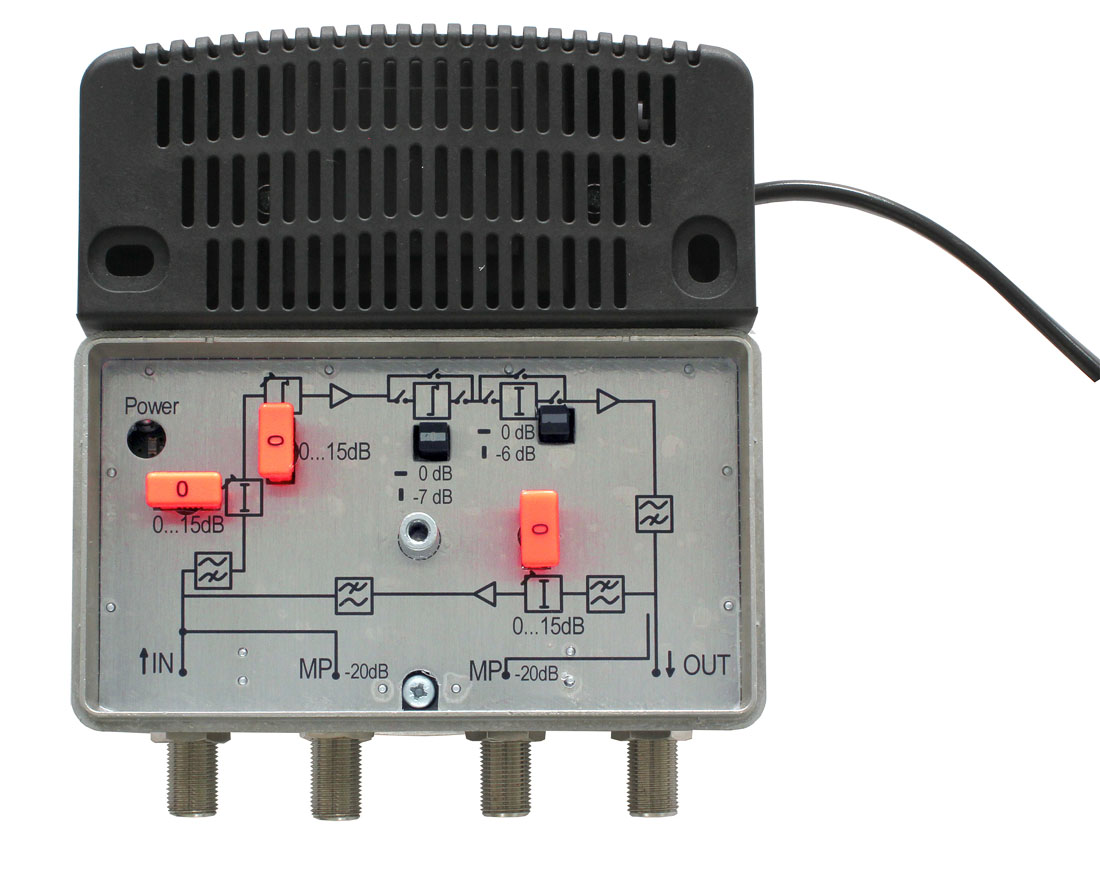

- Broadband amplifier with active 65 MHz return path
- high modulation of the return path for operational safety even with multi-channel load
- Input attenuation adjustable via pad
- Equalizer in input adjustable via pad
- Interstage Slope pluggable in advance
- Interstage attenuation pluggable in advance
- Damping in return path adjustable via pad
- Interstage slope in the return path 3 dB fixed
- Measuring points in input and output
- Pre-amplification 41.5 dB
- Output level Pre-way 108 dBµV
- Gain return path 32 dB
- Output level return path 114 dBµV (7 carriers in RW each 6 MHz / 64 QAM)
- Attenuation pads Pre-attenuation 0 - 15 dB
- Equalizer pads Pre-path 0 - 15 dB
- Attenuation pads return path 0 - 15 dB
- 20 dB Measuring points in input and output
- Unitymedia certified, type class single amplifier 13-18 WE
Download Details
-
Anleitung HV 331, 431, 432, 433 DE pdf · 2mb
-
Datenblatt HV 432, 433 DE pdf · 2mb
-
Blockschaltbild HV 432 und HV 433 pdf · 2mb
