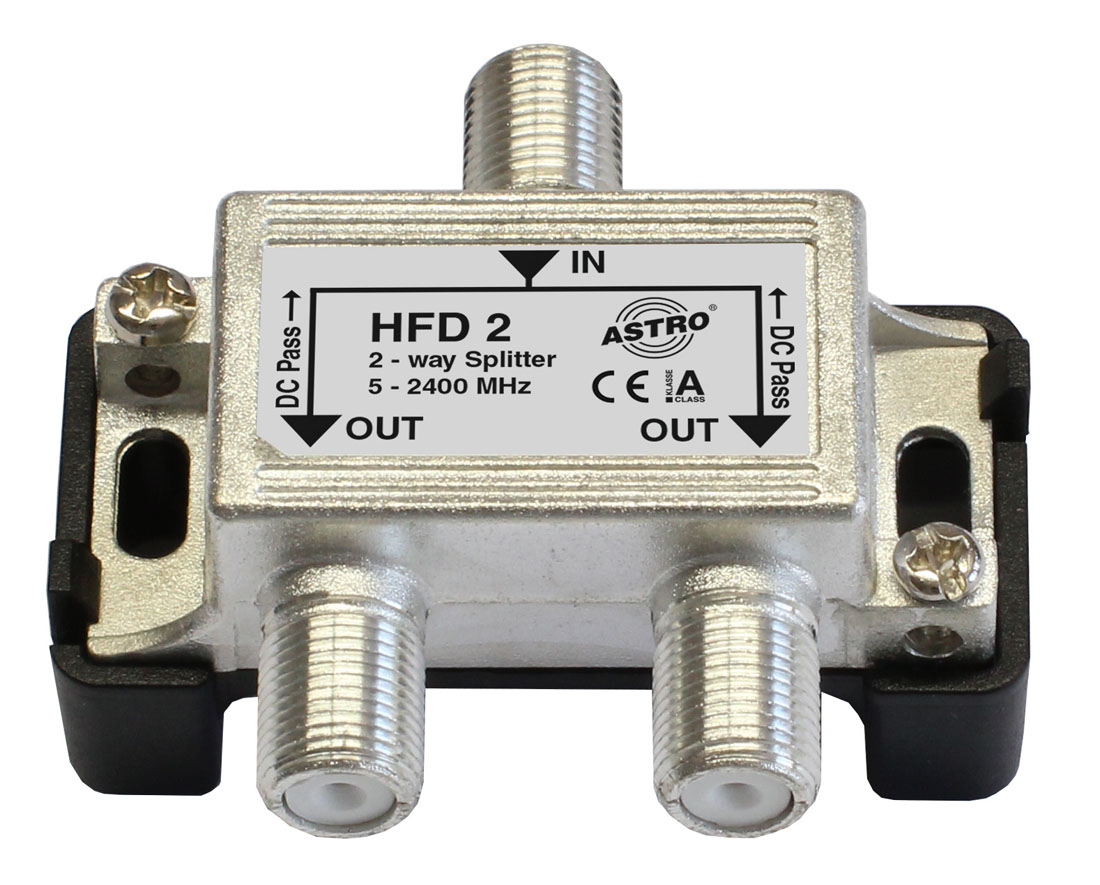

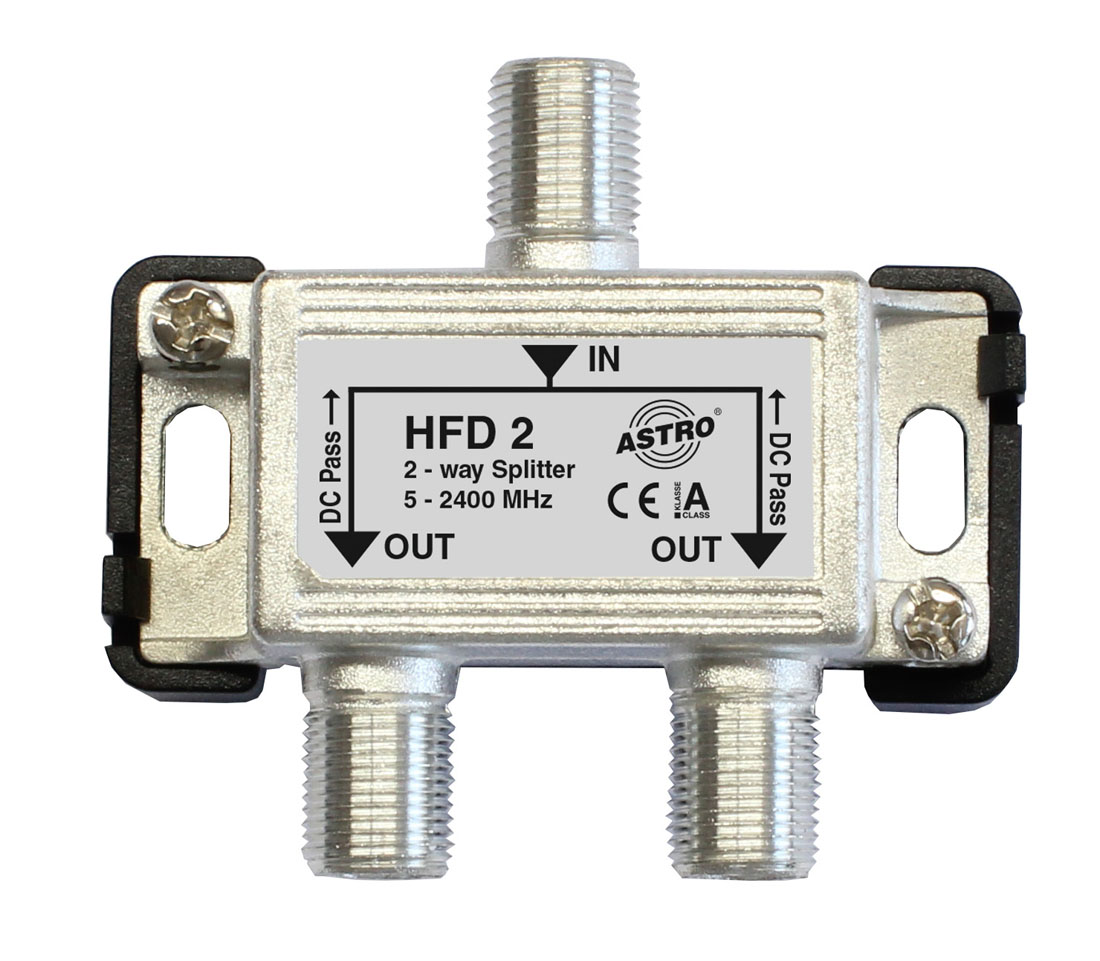

2-way splitter for SAT and CATV (5 pieces)

2-way splitter for SAT and CATV (5 pieces) - Image 2

2-way splitter for SAT and CATV (5 pieces)

€ 33.25

High-quality BK and SAT splitter up to 2400 MHz, DC pass, split attenuation 4–8 dB

Specification

Outputs	2
Type	Splitter

Order number	00414200
EAN-Code	4026187320003

HFD 2

63 in stock

Product Details

can also be used for BK
high-quality distributor for frequencies up to 2400 MHz
for GA and SAT IF house distribution systems
complies with EN 50083-1, EN 50083-2 (shielding class A)
DC passage to each port
Distribution loss 4...8 dB (5...2400 MHz)

Download Details

Datenblatt HFD 2_HFD 3_HFD 4_HFD 8 DE pdf · 2mb
