Stand-alone IP and DVB-C Encoder
Stand-alone IP and DVB-C Encoder - Image 2

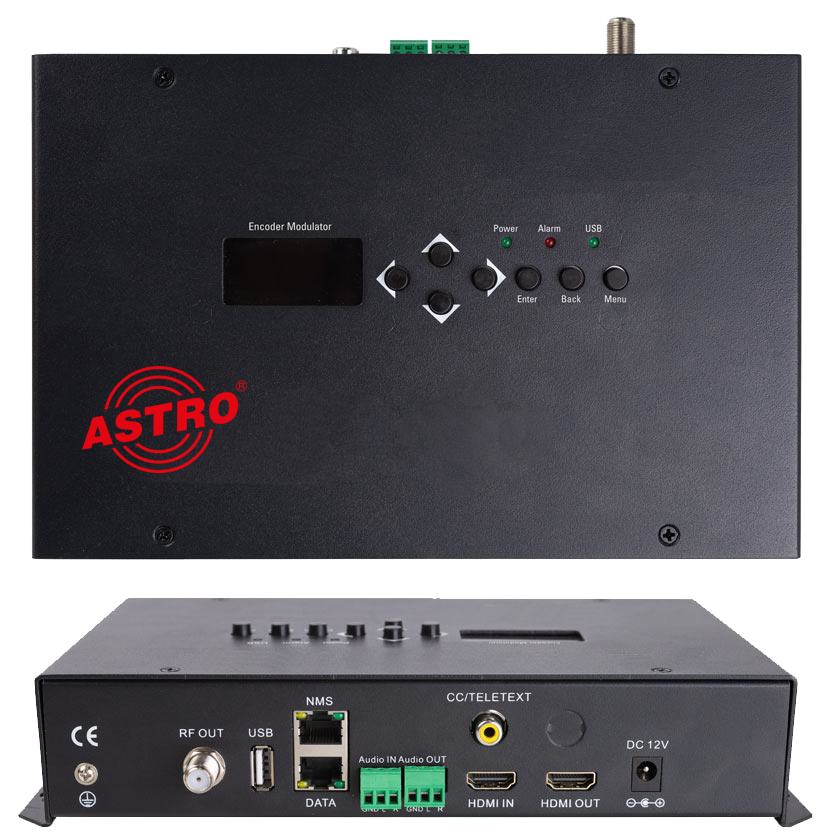

Stand-alone IP and DVB-C Encoder

€ 1'395.00

Input: HDMI and USB TS

Specification

Module type

Base unit
Order number

00380402

EAN-Code

4026187281076

HDIQ1 V3

Out of stock

Product Details
  • Offline playback of the TIVEE service as DVB-C and IPTV for existing headends
  • Input: HDMI and USB TS
  • 16:9 aspect ratio
  • Bit rate: 1,000 - 20,000 Mbps
  • Output: QAM via F socket or IPTV SPTS multicast
  • MER: ≥ 40 dB
  • RF frequency range: 100 - 1,000 MHz; RF output level range: 80 - 103 dBµV
  • Power supply: 12 V DC via external power supply unit (included in scope of delivery)
Download Details
