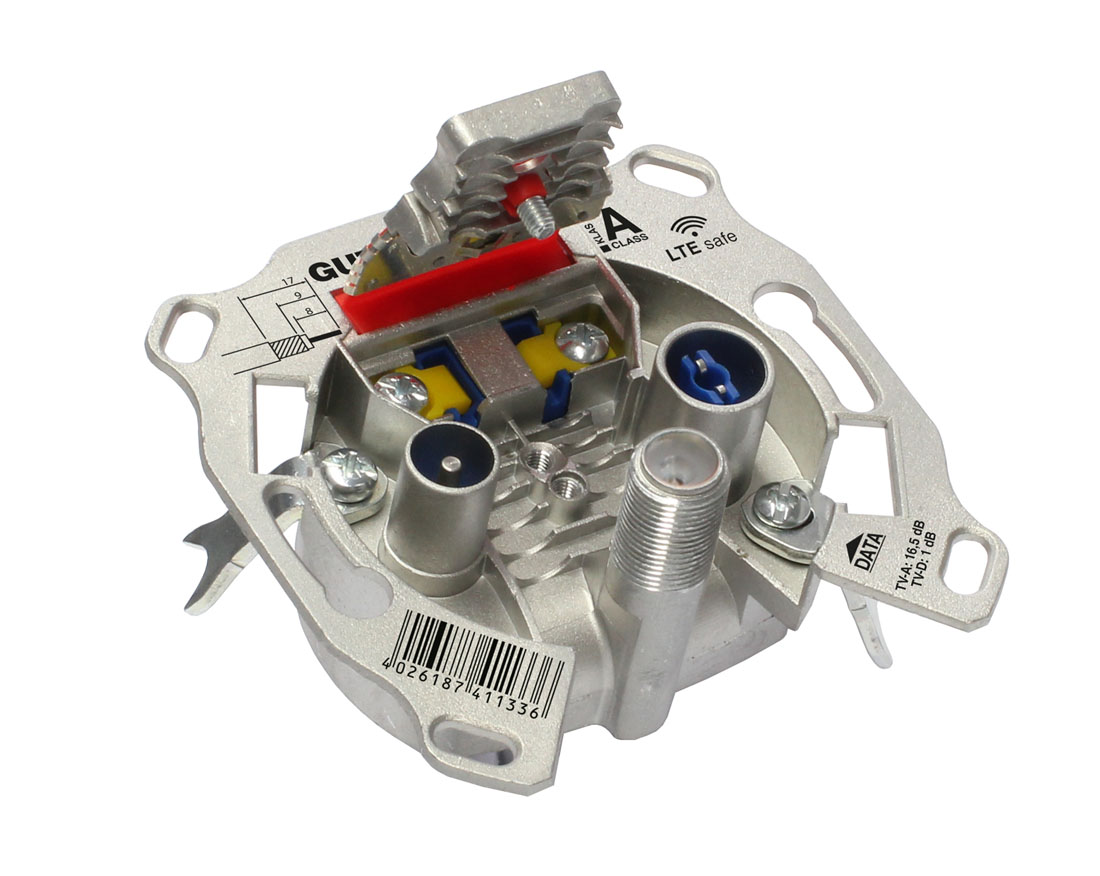

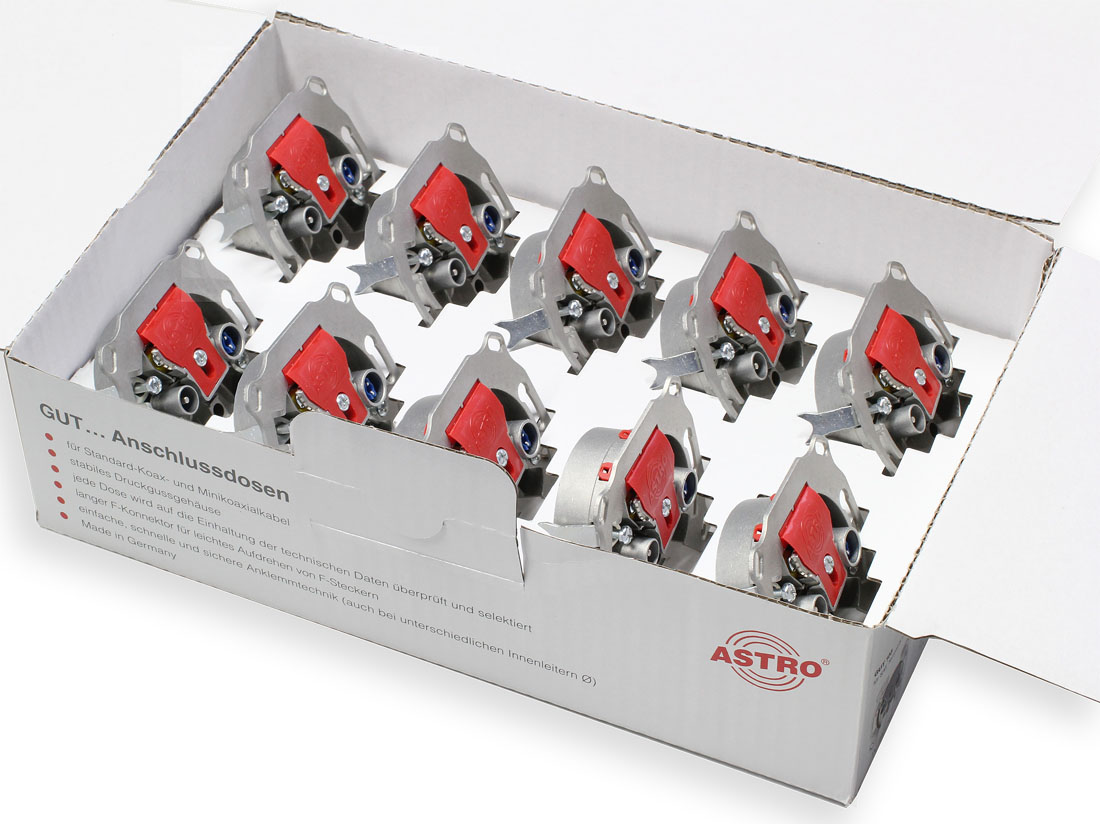

Modem trunkline wall outlet (10 pieces)
€ 89.50
TV & modem connection attenuation approx. 18 dB
Specification
| Application | Multimedia outlet F connector |
|---|
| Order number | 00541471 |
|---|---|
| EAN-Code | 4026187192402 |

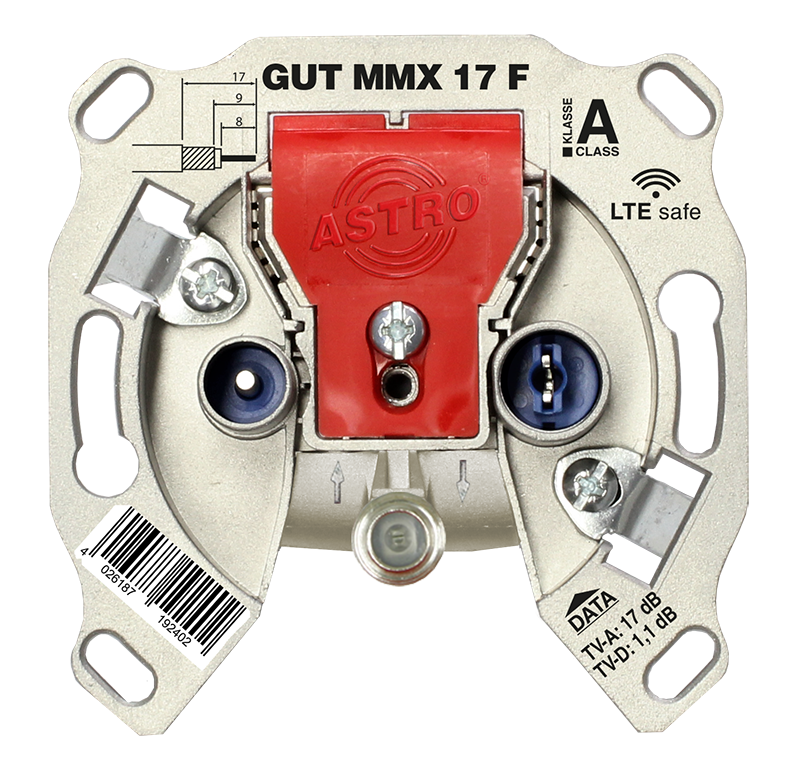

GUT MMX 17 F
32 in stock
Product Details

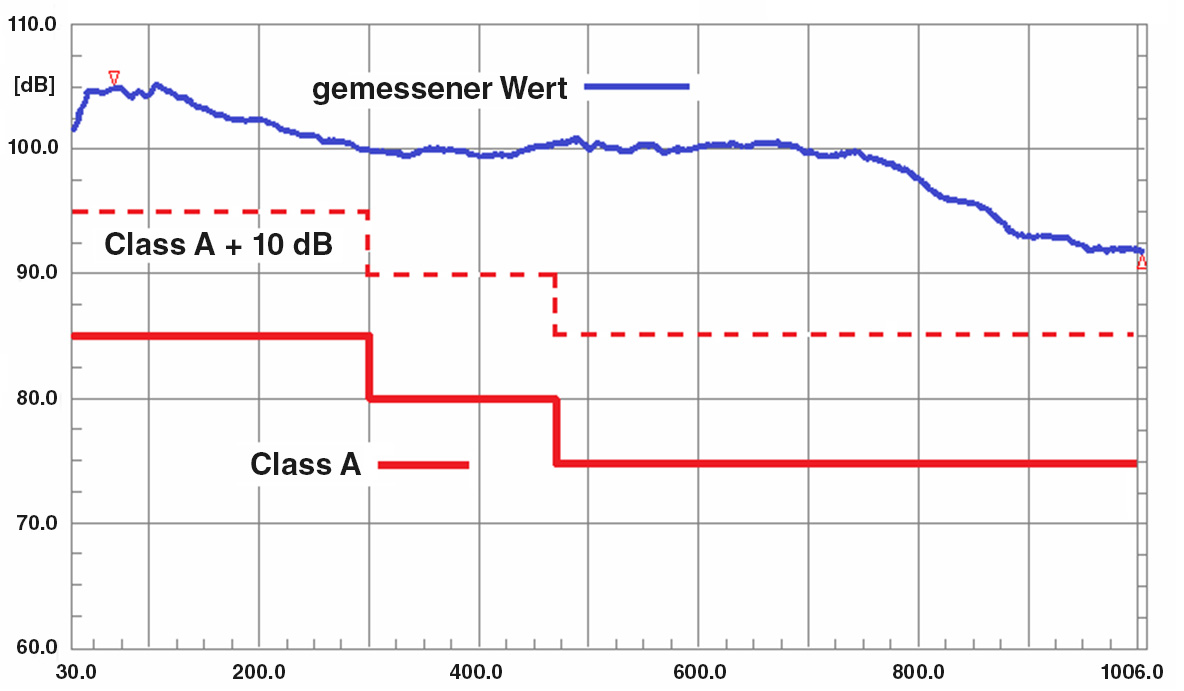

- improved EMC properties through compliance with the Class A + 10 dB (LTE safe)
- extended surge protection
- high irradiation resistance via the radio socket due to FM bandpass filter

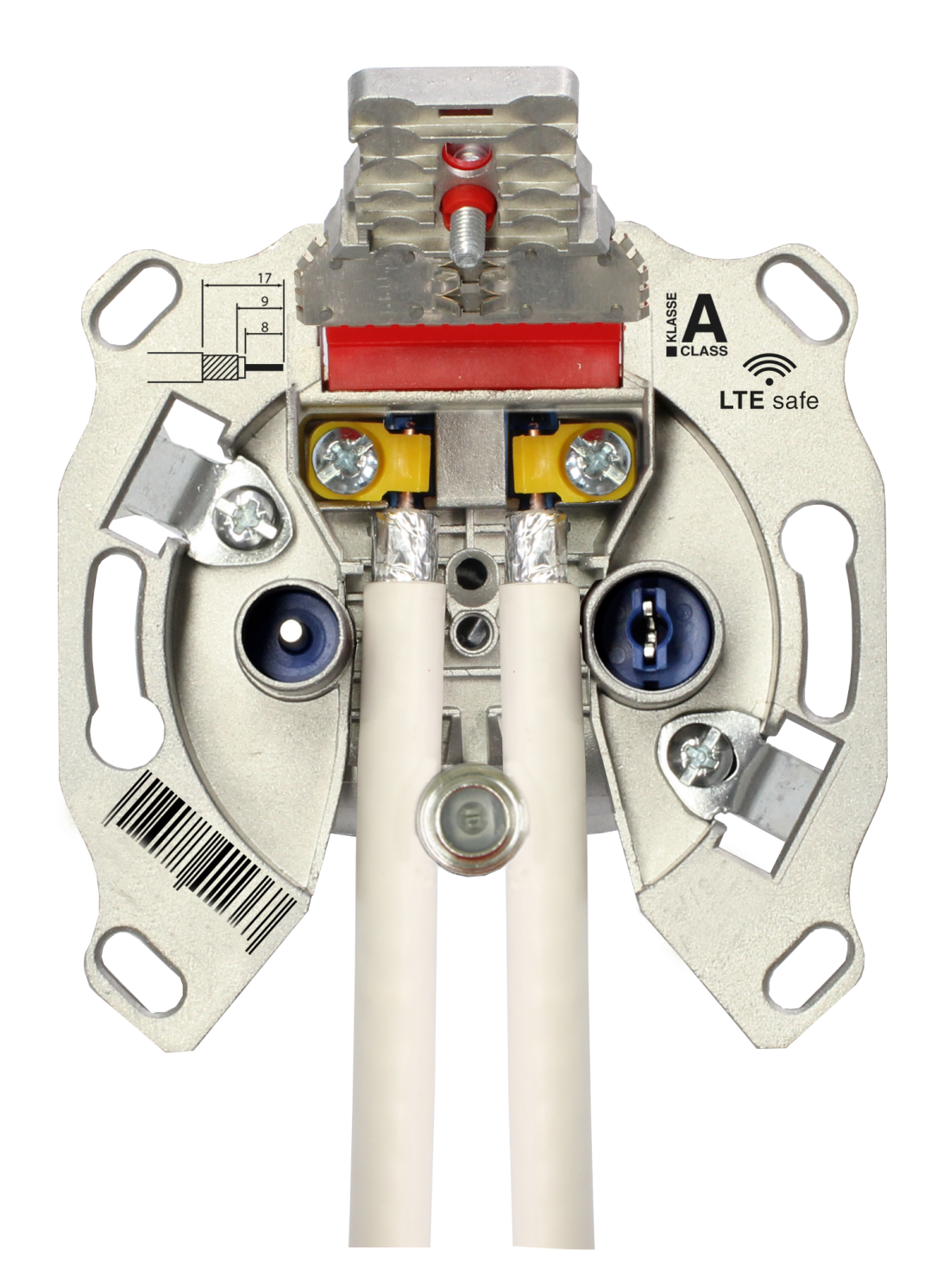

- fast and safe clamping technology even with different cable cross sections
- Decoupling according to EN 50083 despite low attenuation of special channels S2 and S3
- Cable kink protection due to rounded housing shape
- High decoupling between data connection and TV/RF connection prevents interference with TV/radio reception by the cable modem
- F-connector socket for cable modem prevents unintentional insertion of Ingress by connecting a "second TV
- 5 - 1218 MHz
- TV & modem connection attenuation approx. 18 dB
- Trunk attenuation approx. 1.1 dB
- Unitymedia certified
Download Details
-
Beipackzettel GUT MMX Serie DE pdf · 2mb
-
Produkt-Newsflyer GUT LTE safe DE pdf · 2mb
-
Datenblatt GUT MMX 13 - 22 DE pdf · 2mb
-
Datenblatt GUT MMX 4 und MMX 10 DE pdf · 2mb
-
Produkt-Newsflyer GUT MMX und MME DE pdf · 2mb
