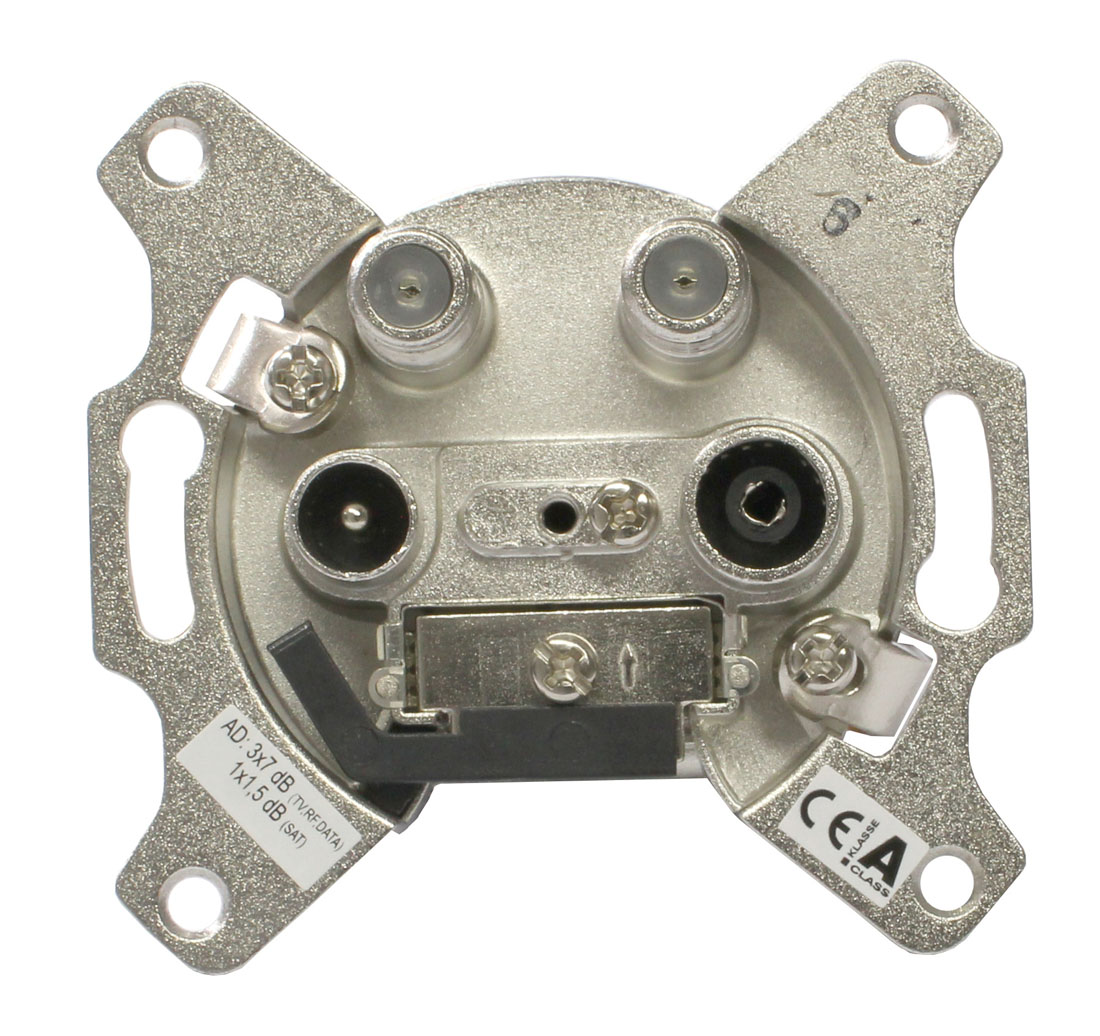

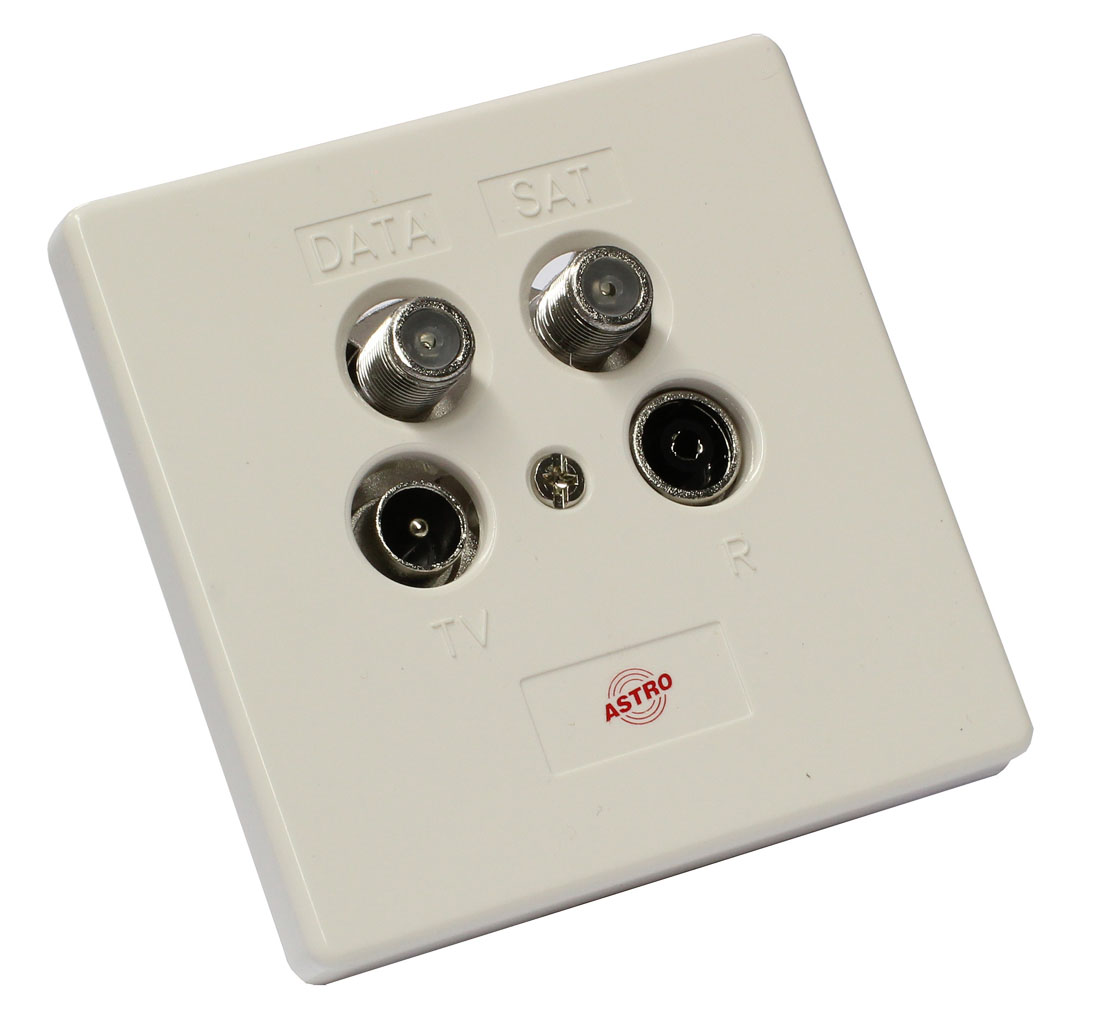

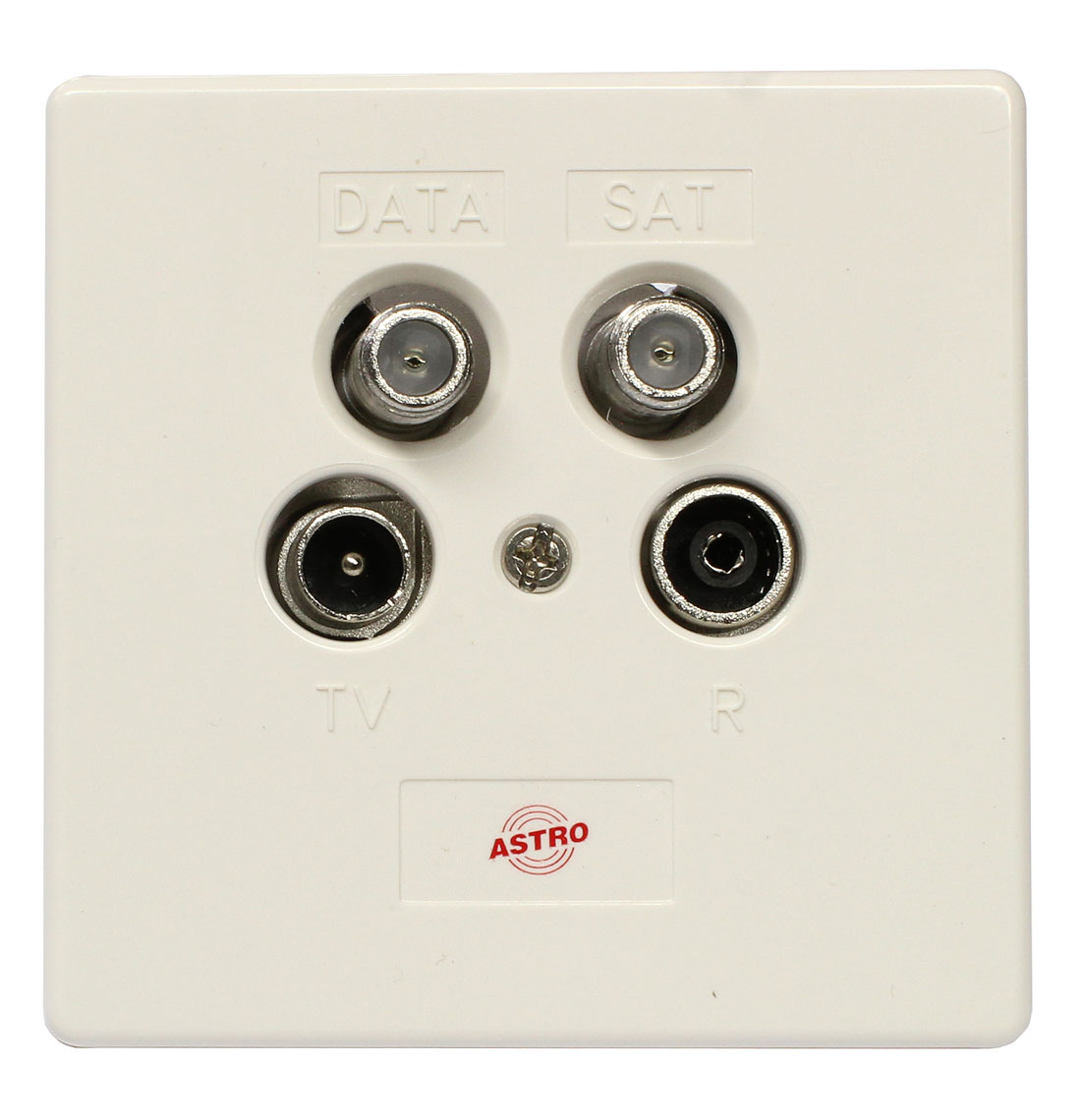

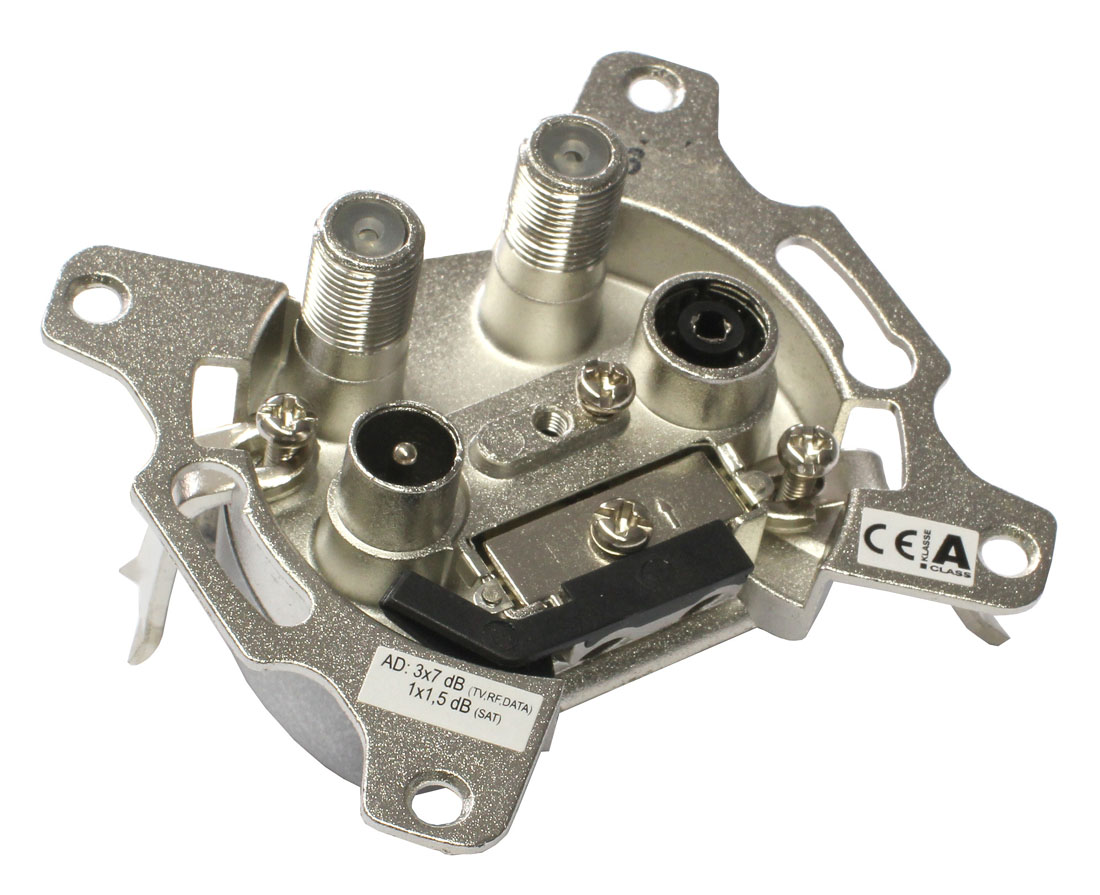

Stubline wall outlet for SAT, multimedia, CATV and DATA, 4 outputs (10 pieces)
€ 134.50
TV & modem connection attenuation approx. 7 dB
Specification
| Application | SAT outlet |
|---|---|
| Approval by network operator | Vodafone GmbH |
| Order number | 00540170 |
|---|---|
| EAN-Code | 4026187120627 |
GUT MMD 7 SAT
67 in stock
Product Details
- for use in SAT IF systems, combined with multimedia applications
- separate SAT connector (F socket)
- Direct current passage between SAT and input
- separate data connection (F socket)
- Extremely high decoupling between RF / TV and data port to avoid interference of the TV IF by the radiating return path signal
- galvanic isolation of the inner conductor RF, TV and Data for protection against ripple voltages and equalizing currents
- 5 - 2400 MHz
- TV & modem connection attenuation approx. 7 dB
- 2 F-connectors for connecting a modem and a SAT receiver
- Vodafone certified
Download Details
-
Beipackzettel GUT MMD 7 SAT DE pdf · 2mb
-
Datenblatt GUT MMD 7 SAT DE pdf · 2mb
